Merge Ranges Add-In
Merge Ranges is an add-in for Excel that lets you easily merge multiple ranges into one master sheet. The Master sheet is instantly refreshed if the data in one of original sheets changes. Once the formula is entered in a workbook, it works automatically without user interaction.
Features
- Master sheet is instantly updated when values in a range are edited/added or deleted.
- Possible to merge up to 255 different ranges.
- Easy to use custom function.
- Get all data from all ranges.
- Column headers in master sheet selects what column data to merge.
- Blank records are not added to master sheet.
- BONUS: Fetch unique distinct records or values from all ranges.
- BONUS: Filter duplicate records or values from all ranges.
Example 1 - Get all data from all ranges
In this example there are four sheets. Master sheet and three sheets to be merged.
Sheet2

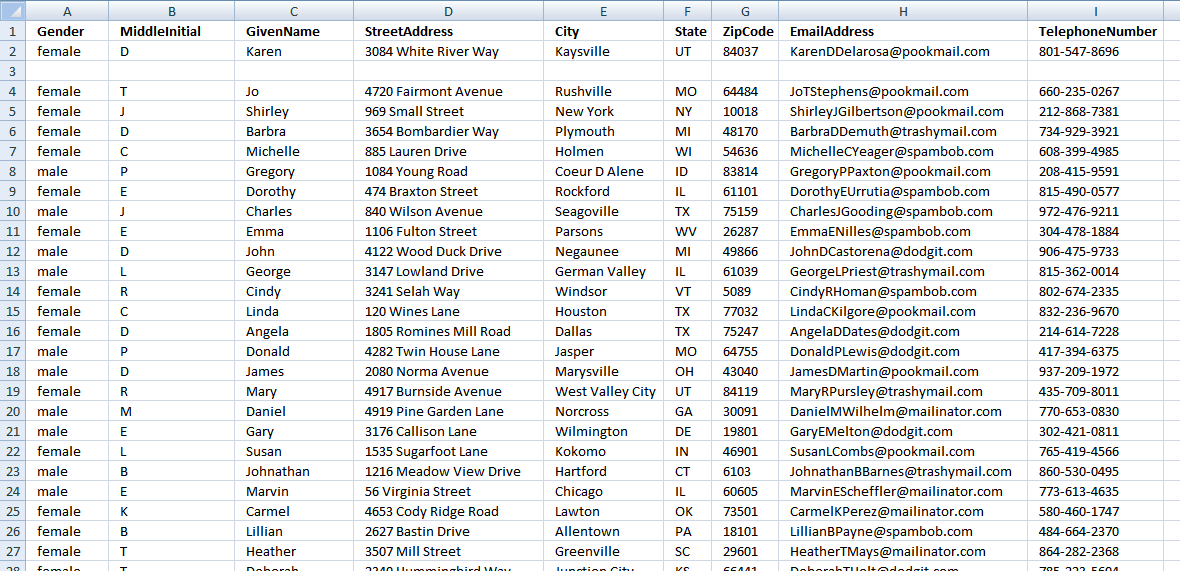

Sheet 2,3 and 4 contains data about people (Fake randomly generated data). The ranges also have some blank records. Press with left mouse button on to expand.
Master sheet

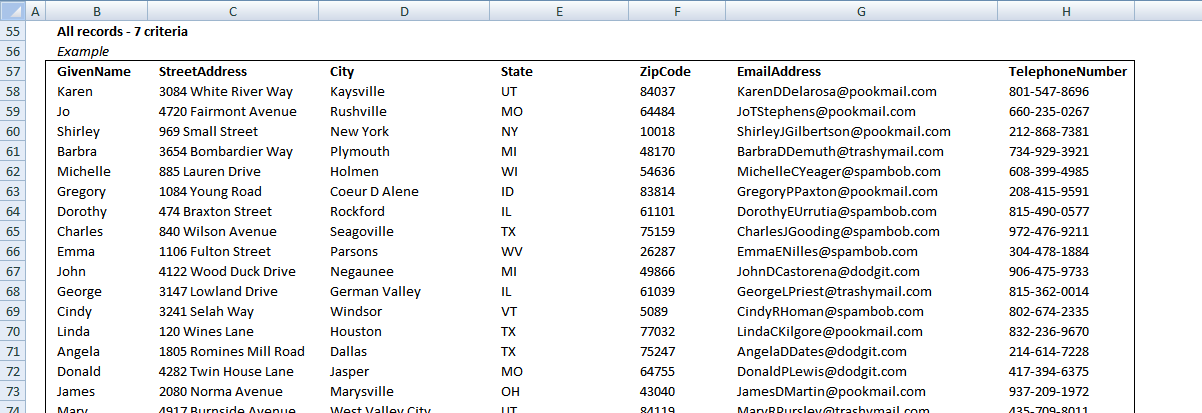

Master sheet contains all data from all three ranges merged into one list. Nothing is removed except blank records.Ā Column headers in master sheet rearranges columns automatically. Compare above picture with picture below and see how the order of column headers can be changed in any way you like.

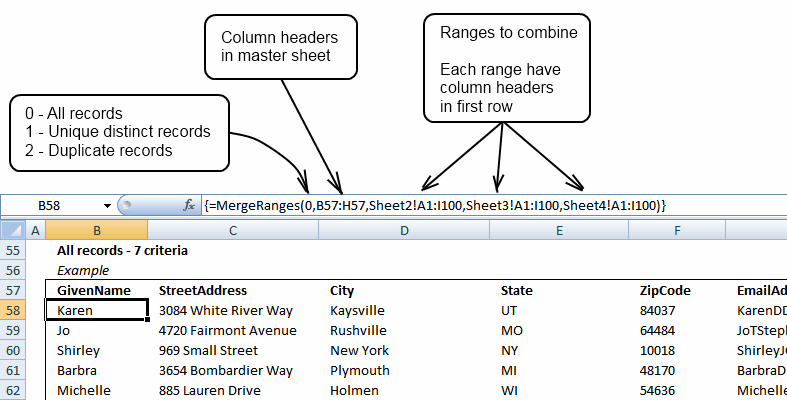

How to use custom function in excel 2007
The user defined function:
=MergeRanges([filter_type], lookup_header(s), range1, range2, ...)
filter_type
0 - Get all records from all ranges
1 - Get unique distinct records from all ranges
2 - Filter all duplicate records from all ranges
lookup_header(s) is a cell reference to a range of values (column headers)
range1, range2, ... are cell references to cell ranges to merge. Each cell range have column headers in first row. There can be as many as 255 cell references.
Example 2 - Filter unique distinct records from all ranges
In this example there are four sheets. Master sheet and three sheets to be merged.
Sheet2
Sheet 2,3 and 4 contains data about people (Fake randomly generated data). The ranges also have some blank records. Press with left mouse button on to expand.
Master Sheet

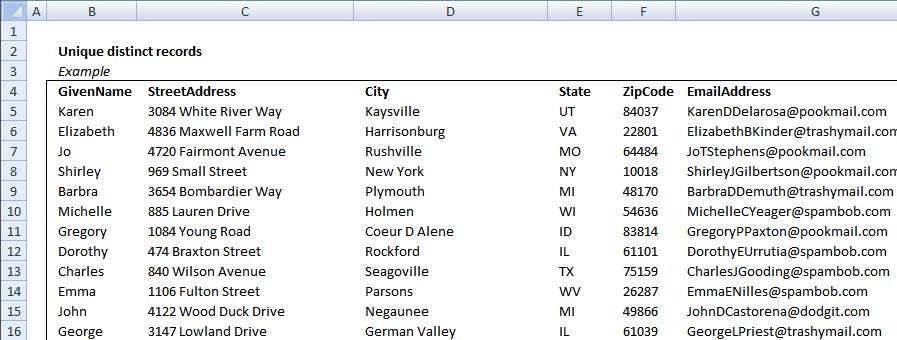

Master sheet contains unique distinct records from all three ranges merged into one list. Nothing is removed except blank records.Ā Column headers in master sheet rearranges columns automatically. Compare above picture with picture below and see how the order of column headers can be changed in any way you like.

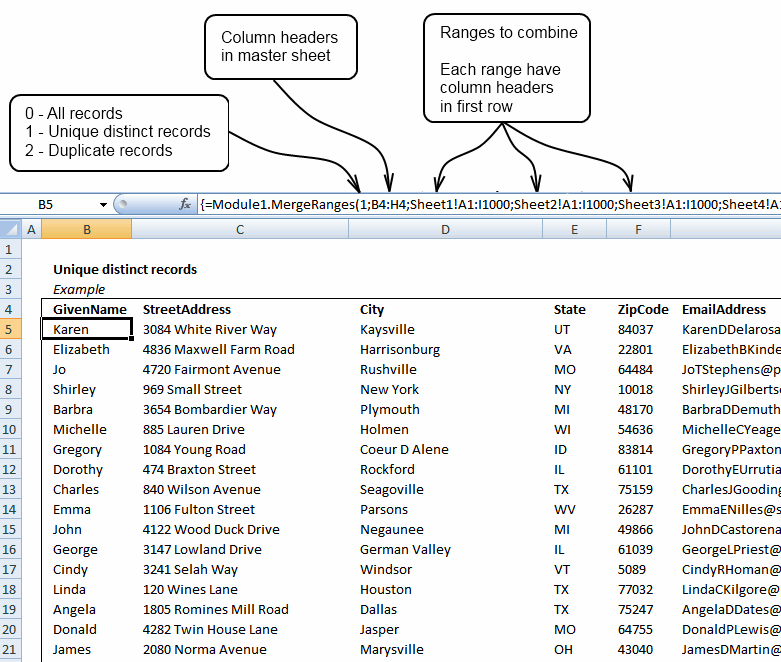

How to create unique distinct records using custom function
The user defined function:
=MergeRanges([filter_type], lookup_header(s), range1, range2, ...)
filter_type
0 - Get all records from all ranges
1 - Get unique distinct records from all ranges
2 - Filter all duplicate records from all ranges
lookup_header(s) is a cell reference to a range of values (column headers)
range1, range2, ... are cell references to cell ranges to merge. Each cell range have column headers in first row. There can be as many as 255 cell references.
Example 3 - Filter duplicate records from all ranges
In this example there are four sheets. Master sheet and three sheets to be merged.
Sheet2
Sheet 2,3 and 4 contains data about people. (Fake randomly generated data).Ā The ranges have column headers in first row (requirement). There are also some blank records.
Master sheet

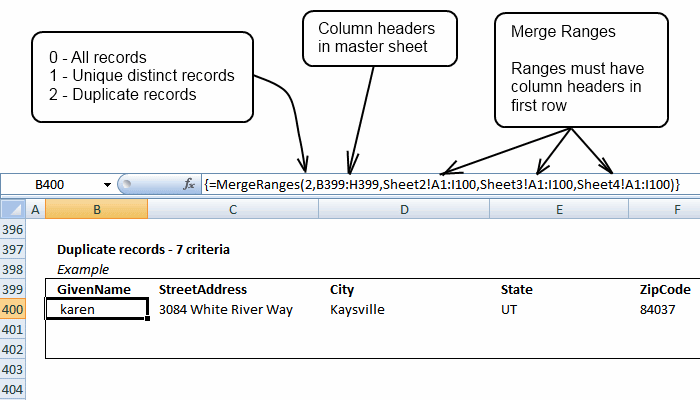

The Merge Ranges Add-in found one duplicate record from all three ranges combined.
What you get
- Merge Ranges Add-in for Excel 2007/2010/2013 *.xlam file.
- Instructions on how to install.
- Instructions on how to use custom function.
- Excel *.xlsm example file.
- 2 licenses, home and office computer.
- You can buy VBA source file for $10 more.
Purchase Merge Ranges Add-In for Excel 2007/2010/2013 - Price $19 US
Purchase Merge Ranges Add-In for Excel 2007/2010/2013 (unlocked, you can view and edit vba code) - Price $29 US
Questions:
Do column headers in master sheet need to be arranged in the same way as column headers in other sheets/ranges?
No, you can rearrange column headers as you like. A requirement is that they have identical spelling (not case sensitive).
Do I need to have as many column headers in master sheet as in the other ranges?
No, you can have fewer column headers in your master sheet, if you like.
How do I enter this user defined function? It is an array formula.
-
- Type user defined function in formula bar.
- Press and hold Ctrl + Shift.
- Press Enter once.
- Release all keys.
Is there a money back guarantee?
Sure, you have un-conditional money back guarantee for 14 days.
Can I view the vba source code?
No, it is locked for viewing but you can buyĀ VBA source file for $10 more.
I have more questions?
Use thisĀ contact form to let me know.


Purchase Merge Ranges Add-In for Excel (unlocked, you can view and edit vba code) - Price $29 US



How the Purchase Process Works?
- Payment is accepted via PayPal.
- After you finish payment,Ā you are redirected to the get page. You will also receive an email with the get link.
- You have five attempts to get the file.
- The get link will expire in 120 hours (5 days).
If you can“t geting the file, contact me.
Add in category
In this post I am going to show how to create a new sheet for each airplane using vba. The […]
This article demonstrates an array formula that searches two tables on two different sheets and returns multiple results. Sheet1 contains […]
Macros and custom functions are great, they can automate many tedious tasks. To have them available whenever you need them, […]
Combine merge category
The picture above shows how to merge two columns into one list using a formula. Table of Contents Merge two […]
This article demonstrates two formulas, they both accomplish the same thing. The Excel 365 formula is much smaller and is […]
The above image demonstrates a formula that adds values in three different columns into one column. Table of Contents Merge […]
Excel categories
29 Responses to “Merge Ranges Add-In”
How to comment
How to add a formula to your comment
<code>Insert your formula here.</code>
Convert less than and larger than signs
Use html character entities instead of less than and larger than signs.
< becomes < and > becomes >
How to add VBA code to your comment
[vb 1="vbnet" language=","]
Put your VBA code here.
[/vb]
How to add a picture to your comment:
Upload picture to postimage.org or imgur
Paste image link to your comment.
It looks like you are assuming that everyone knows that this technique can return the # of unique data entries from a real 3D range.
=SUM(IF(FREQUENCY(Jan:Mar!$K$1:$L$3,Jan:Mar!$K$1:$L$3)>0,1))
I am pretty sure that no one has ever done this before, so congratulations!
David Hager,
Thanks!!
/Oscar
Hi Oscar,
I am not sure if my problem is something which is similar to what you have done here or not. I hope that you would know and could help me so I will give it a try....
I have multiple worksheets in a workbook. Each worksheets is project specific. Each worksheet contains almost identical format. The columns I am interested in each workshets are "Date Plan", "Date Compelted" and "variance" and "Project Code"
I then want data from all these column to be extracted in a Report worksheet and later want to do a trend chart by sorting all dates in chronological order.
Key bit to start is how do I get data out from worksheets. Esentially I want all the data without any loss. There are chances that some of the data between worksheet1 & 2 could be identical, apart from project code.
Also, preference is that this coding or formula should work for any future addition to worksheet data and workbook worksheets.
I am not sure if I manage to explain everything very clearly. Please do not hesitate to email me if you need more clarification.
Best Regards,
Jignesh
Hi Jignesh!
Interesting question!
I“ll post an answer as soon as I can.
Thanks Oscar,
Really appreciate your input and help. I am wondering if there would be a way to write a formula with lookup function to get the date from various worksheet...
say if I ask to search for January data then I am expecting January data from all work sheet to be extracted and copied in my Report worksheet.
I can then have 12 X 4 ( For Key Columns - date plan / completed / variance and project code) different columns with all monthly data from various worksheet.
I would then need to plot a chart using the variance data....
Problem is I am not sure if this is possible and if yes, how to write such fomula :(
Hello, Oscar,
First of all id like to thank you for your blog. I have found many very usefull tips and answers, but still i have one problem that i cant solve by my self. So im asking for your help.
Here is the problem:
i have a data table with 2 columns:
A B
2.93 12.8
2.94 12.2
3 8.38
3.03 6.76
3.04 5.33
3.06 6.36
Lets say i have a cell with number 3. I need to find a number in column A that has a number >= than 3, but also has the smallest number in column B.
(with my cell = 3 it would be 3.04 from A and 5.33 from B)
Simple vlookup gives me first >= number, but in most cases in column B is not the smalest number.
I hope you can help me,
Best regards,
Liudas
Liudas,
See this post: https://www.get-digital-help.com/2010/03/24/lookup-using-two-criteria-in-excel/
Jignesh,
I think I can solve your problem using vba. I hope I can post a solution here soon.
Jignesh,
see this post: https://www.get-digital-help.com/2010/03/29/consolidate-sheets-in-excel-vba/
Thanks a lot Oscar! You are genius! Thanks again!
hi..i have been working on my problem for quite sometime now...i wud b very thankful if u cud provide me the solution.
problem: i have created a workbook containing 12 sheets each corresponding to a month. each sheet has 3 fields-region,premium, claims and ICR. Mow i want to consolidate this data using drop down menus such that wen i select say january month from the drop down, january months data for all the regions shoud be dsiplayed ans similarly for all other months. in addition region should also be in a drop down i.e. wen viewing the data for a particular month, i could select a region and then view its data.
Pls help me in this
Hello,
Is is possible to get this work with ID-names not numbers?
Here: "Create a sorted unique distinct list of numbers originating from multiple sheets"
Lets say if i have the id's like ALFA, BETA, GAMMA, DELTA etc. is it possible to collect all these unique names and combine some data from their rows and sheets? I assume the function small doesn't work anymore?
Thanks for good work!
Tjena Jan-Erik!
As far as I know using formulas, no!
But maybe pivot tables can solve your problem?
Excel Pivot Table Tutorial -- Multiple Consolidation Ranges
Hi,
Same logic i need to be use , but there is the problem when my id nos are more then the No.of row values i.e in excel 2007 total no of row is 1048575 , but hear my id value is more then rowno value i.e 5505982 so that i am not able to get the output .
can you plz sugest ..
Thanks
R Thamu
Thamu,
Interesting question!
I never thought row function created numerical limits. 1 to 1048575.
I“ll comment here as soon as I have an answer.
Hi Oscar,
I have a question about merging two excel worksheets into one masterfile.
I have a first worksheet with daily stock price data for hundreds of firms over a couple of years (panel data). I have the following columns: Firm Number, Date and stock price.
Now I have a second worksheet containing accounting data for the same firms over the same years. Since the accounting data is yearly data, this sheet has less observations.
The columns I have in this sheet are: Firm number, Date,Fiscal Year, FiscalYear end month and a few accounting variables.
Now, I want to add in the columns next to the daily stock market data the accounting variables for that specific fiscalyear.
So for example:
I have a row with stock price of firm #1 at 27-12-2010. The accounting worksheet shows that the fiscal-year of firm #1 ends on 31-09-2010, so first I have in someway to determine in the daily stock price file that 31-12-2010 is fiscalyear 2011 for firm #1 and consequently, in the columns next to the stock price per 27-12-2010 I want to add the accounting variables of firm #1 in fiscal-year 2011.
I would like to do this with normal excel formula's (not vba), but I cannot find the solution...
I really hope you can help me!
Thanks in advance!
S.W.
Hi Oscar, i hope you can help.
i have a workbook consisting of several sheets. each sheet depicts data for several critera related to that specific sheet (the row fields are the same across each sheet) which is further broken down into categories specific for that area. in the summary sheet which also share the same rows i should be able to select a category (from a dropdown) which will give me a summary of those fields in each category.
i.e
the headings for the categories on each sheet would be 1 to 100(area 1, area 2, etc). furthermore fields making up the rows for those headings(e.g apples, pears, oranges, etc)
areas might overlap in town sheets.
the sheets are named by town (town 1, town 2, etc)
the summary sheet - i wish to see how many apples, pears, oranges was sold in a specific area across all the towns.
if i select say 'area 2' in the area dropdown, it will search across the sheets and display the totals of each of the items sold for area 2.
thank you for your help...
I need to consolidate some excel workbook into one to make a master list.and i also want to have duplicate to identify on that master sheet,you think you can help me?
Hi I have the same question however with different ID. In my case I have several sheets which I like to combine in to one, like the example but each sheet has the date and time in the first column and a value in the second. So the idea is to have a master sheet with all possible date/time in the first column and depending if there is a value in the second column for the first sheet the third column for the second sheet and so on ...
Dear sir,
You worksheet is awesome but when I type 29 or above numbers in ID it shows error.
Kindly advise.
Kind Regards,
Sanjeev
Hello Oscar,
Hope u could help me. I have a workbook that contains multiple sheets, say (Nov1, Nov2...Nov30). Each sheet contains columns such as "Scripts executed","number of hours worked","productivity" "Defects raised" assigned to all the employees
I need to create a final productivity sheet containing columns namely,
1.Total number of scripts executed
2.Total hours spent
3.Average productivity
4.Total defects raised
against each employee.
Also the problem requires, cumulative updation of final productivity sheet. Is this can be solved?? Awaiting for ur solution
karthik,
Yes, upload an example workbook.
You are genius Oscar. I was trying vlookup but didn't get it to do what i wanted. You just wowed me. God bless you. Thanks you so so much for being there.
Sheet 1
Date Ref No From/TO Item Received Qty
12-Oct-13 121 DXB Pen 25
13-Oct-13 122 SHJ Pencil 18
14-Oct-13 123 Pen 19
Sheet 2
Date Ref No From/TO Item Issued Qty
13-Oct-13 256 DXB Pen 12
14-Oct-13 365 SHJ Pencil 17
15-Oct-13 656 ADH Pen 11
Sheet 3
Date Ref No From/TO Item Received Qty Issued Qty
12-Oct-13 121 DXB Pen 25
13-Oct-13 122 SHJ Pencil 18
13-Oct-13 256 DXB Pen 12
14-Oct-13 123 Pen 19
14-Oct-13 365 SHJ Pencil 17
15-Oct-13 656 ADH Pen 11
please solve the problem like sheet 3
abdulali,
The Merge Ranges add-in can do that for you, check it out:
https://www.get-digital-help.com/2010/02/28/combine-data-from-multiple-sheets-in-excel/#mergeranges
This method does NOT work... Unless I am completely missing something. I am referring to the first method listed with all basic excel formulas. You find the max IDs as 28 in a formula and then you just manually type that in to your unique list step? What?
How is that automated at all. I am referring to:
=SMALL(IF(FREQUENCY(Jan:Mar!$A$2:$A$1000, ROW($1:$28))0, ROW($1:$28), ""), ROW(A1)) + CTRL + SHIFT + ENTER
This is only useful for finding a unique list of a never changing table as even tested in your example if I simply add an extra value to one of your tabs your entire sheet dies.
Can you address this?
Thanks!
Dear Honorable Team
I am working in Manpower Company.
My Problem is that i have Multipal Sheets in excel
For Example I have a Timesheet For January Like this
Name ID Hours Rate Amount
X 2 100 10 1000
i want a unique sheet that collect automatically and plus all the data in separate sheet so i can easily maintain all my data.Please Help me if its possible.
Hi Oscar,
Can not tell you how much your site has helped me. I know this is an older post, but I am stuck and would imagine some others could have this question.
I am wondering if there is a way to use the formula you created to "sort unique distinct list of numbers originating from multiple sheets" while also filtering for multiple conditions?
So imagine if in the example you gave not only is there an ID number but also a column with product code, a column with territory ID, and a column with the date of the transaction. I want this formula to return the ID number that matches 3 different criteria pertaining to those 3 columns, across multiple sheets, and only allowing unique values.
Thank you for all your help in excel!
Chris,
I don“t think it is possible, you need a user defined function (vba).
