Question:

How do I create a drop-down list with unique distinct alphabetically sorted values?

1. Sort values using array formula

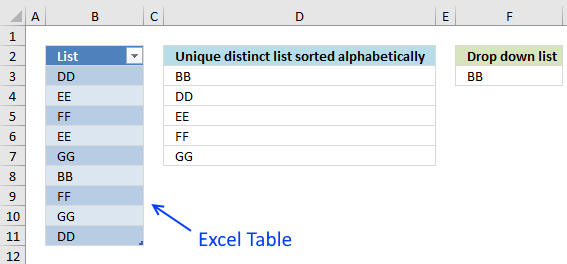

The helper column D filters unique distinct values sorted from A to Z from values in column B. The drop-down list in cell F3 is populated with the values in column D.

Array formula in cell D3

=INDEX($B$3:$B$11, MATCH(SMALL(IF(COUNTIF($D$2:D2,$B$3:$B$11)=0,COUNTIF($B$3:$B$11, "<"&$B$3:$B$11),""), 1), COUNTIF($B$3:$B$11, "<"&$B$3:$B$11), 0))

Watch a video explaining the formula

Watch a video explaining how to populate Drop-Down list with a dynamic named range

Recommended article:

Recommended articles

test
Sort a column alphabetically
Table of Contents Sort a column - Excel 365 Sort a column using array formula Two columns sorting by the […]

Recommended articles

test
Create dependent drop down lists containing unique distinct values
This article explains how to build dependent drop down lists. Here is a list of order numbers and products. We […]

1.1 How to create an array formula

  1. Select cell D3
  2. Type above array formula
  3. Press and hold Ctrl + Shift
  4. Press Enter once
  5. Release all keys

Recommended article:

Recommended articles

test
A beginners guide to Excel array formulas
Array formulas allows you to do advanced calculations not possible with regular formulas.

1.2 How to copy array formula

  1. Select cell D3
  2. Copy cell (Ctrl + c)
  3. Select cell range D4:D7
  4. Paste (Ctrl + v)

1.3 Explaining array formula in cell D3

Step 1 - Filter unique distinct values

COUNTIF($D$2:D2,$B$3:$B$11)=0

The COUNTIF function counts previous values above to make sure that no duplicates are displayed.

If no values in previous cells above are found the COUNTIF function returns a 0 (zero) for that position in the array.

COUNTIF($D$2:D2,$B$3:$B$11) returns {0;0;0;0;0;0;0;0;0}

COUNTIF($D$2:D2,$B$3:$B$11)=0 returns {TRUE;TRUE; TRUE;TRUE; TRUE;TRUE; TRUE;TRUE;TRUE}

The picture below shows the array in cell range C3:C11. The array tells the formula that no values have yet been displayed in cells above cell D3

Note that the first argument in the COUNTIF function ($D$2:D2) is a growing cell reference meaning when you copy the formula to cells below the cell reference expands automatically.

Recommended articles

test
How to use the COUNTIF function
Counts the number of cells that meet a specific condition.

Step 2 - Create an array with sort rank numbers

The COUNTIF function comes once again to rescue, it allows you to rank each value in cell range B3:B11 based on its position in a sorted array.

COUNTIF($B$3:$B$11, "<"&$B$3:$B$11)

Value "BB" is first in a sorted list indicated by the corresponding value 0 (zero) in column C. The second value is "DD" with rank number 1.

COUNTIF($B$3:$B$11, "<"&$B$3:$B$11) returns {1;3;5;3;7;0;5;7;1}

Step 3 - Build an array with rank numbers based on which values that have not been shown yet

IF(COUNTIF($D$2:D2,$B$3:$B$11)=0,COUNTIF($B$3:$B$11, "<"&$B$3:$B$11),"")

becomes

IF({TRUE;TRUE; TRUE;TRUE; TRUE;TRUE; TRUE;TRUE;TRUE},{1;3;5;3;7;0;5;7;1},"")

and returns {1;3;5;3;7;0;5;7;1}

No values in the array have been filtered out, this makes sense since the array formula is in cell D3 and no values have been displayed yet.

Recommended articles

test
How to use the IF function
Checks if a logical expression is met. Returns a specific value if TRUE and another specific value if FALSE.

Step 4 - Find the smallest value in the array

The SMALL function lets you filter the n-th smallest value from an array of values. It has a major advantage to the MIN function as it also ignores text and blank values.

SMALL(IF(COUNTIF($D$2:D2,$B$3:$B$11)=0,COUNTIF($B$3:$B$11, "<"&$B$3:$B$11),""), 1)

becomes

SMALL({1;3;5;3;7;0;5;7;1}, 1)

and returns 0 (zero).

Recommended articles

test
How to use the SMALL function
The SMALL function lets you extract a number in a cell range based on how small it is compared to the other numbers in the group.

Step 4 - Find the position of a value in an array of values

To be able to fetch the right value to cell D3 we need to know it's position in column B. The MATCH function returns the position.

MATCH(SMALL(IF(COUNTIF($D$2:D2,$B$3:$B$11)=0,COUNTIF($B$3:$B$11, "<"&$B$3:$B$11),""), 1), COUNTIF($B$3:$B$11, "<"&$B$3:$B$11), 0)

becomes

MATCH(0, COUNTIF($B$3:$B$11, "<"&$B$3:$B$11), 0)

becomes

MATCH(0, {1;3;5;3;7;0;5;7;1}, 0)

and returns 6. Value 0 (zero) is in position 6 in this array {1;3;5;3;7;0;5;7;1}

Recommended articles

test
How to use the MATCH function
Identify the position of a value in an array.

Step 5 - Fetch value

The INDEX function retrieves a value based on a coordinate, since it is only a column the INDEX function allows you to only use a row number as a coordinate.

INDEX($B$3:$B$11, MATCH(SMALL(IF(COUNTIF($D$2:D2,$B$3:$B$11)=0,COUNTIF($B$3:$B$11, "<"&$B$3:$B$11),""), 1), COUNTIF($B$3:$B$11, "<"&$B$3:$B$11), 0))

becomes

INDEX($B$3:$B$11, 6)

becomes

INDEX({"DD";"EE";"FF";"EE";"GG";"BB";"FF";"GG";"DD"}, 6)

and returns value "BB" in cell D3.

Recommended articles

test
How to use the INDEX function
Gets a value in a specific cell range based on a row and column number.

1.4 How to create a drop-down list that expands with new values automatically

  1. Press with left mouse button on Data tab
  2. Press with left mouse button on Data Validation button
  3. Press with left mouse button on "Data validation..."
  4. Select List in the "Allow:" window. See picture below.
  5. Type =OFFSET($B$2, 0, 0, COUNT(IF($B$2:$B$1000="", "", 1)), 1) in the "Source:" window
  6. Press with left mouse button on OK!

create-a-drop-down-list-containing-only-unique3

Recommended articles:

Recommended articles

test
Create dependent drop down lists containing unique distinct values
This article explains how to build dependent drop down lists. Here is a list of order numbers and products. We […]

Final note

Convert the data in column B into an excel defined table to make it dynamic. Then you don't need to adjust the cell references in the array formula in column D every time you add or delete values in column B.

Get *.xlsx file

Create a drop down list containing only unique.xlsx

Recommended articles:

Recommended articles

test
Create dependent drop down lists containing unique distinct values in multiple rows
Sharmila asks: How can i use these list for multiple rows? I would like to use these lists for multiple […]

Recommended articles

test
Invoice template with dependent drop down lists
This article demonstrates a basic invoice template I created. It lets you use dropdown lists to quickly select products on […]

Recommended articles

test
Dependent drop down lists – Enable/Disable selection filter
Josh asks: I have this working right now with 6 drop downs/lists. I wanted to see if you possibly know […]

Recommended articles

test
Dependent drop-down lists in multiple rows
This article demonstrates how to set up dependent drop-down lists in multiple cells. The drop-down lists are populated based on […]

2. Sort values using VBA

Array formula in cell B2:B8000:

=FilterUniqueSort($A$2:$A$8212)

How to create array formula

  1. Select cell range B2:B8000
  2. Type array formula above
  3. Press and hold Ctrl + Shift
  4. Press Enter once
  5. Release all keys

VBA code
You can find the selectionsort function here: Using a Visual Basic Macro to Sort Arrays in Microsoft Excel

Function FilterUniqueSort(rng As Range)

Dim ucoll As New Collection, Value As Variant, temp() As Variant
ReDim temp(0)

On Error Resume Next
For Each Value In rng
    If Len(Value) > 0 Then ucoll.Add Value, CStr(Value)
Next Value
On Error GoTo 0

For Each Value In ucoll
    temp(UBound(temp)) = Value
    ReDim Preserve temp(UBound(temp) + 1)
Next Value

ReDim Preserve temp(UBound(temp) - 1)
SelectionSort temp

FilterUniqueSort = Application.Transpose(temp)

End Function





Function SelectionSort(TempArray As Variant)
          Dim MaxVal As Variant
          Dim MaxIndex As Integer
          Dim i, j As Integer

          For i = UBound(TempArray) To 0 Step -1


              MaxVal = TempArray(i)
              MaxIndex = i


              For j = 0 To i
                  If TempArray(j) > MaxVal Then
                      MaxVal = TempArray(j)
                      MaxIndex = j
                  End If
              Next j

              If MaxIndex < i Then
                  TempArray(MaxIndex) = TempArray(i)
                  TempArray(i) = MaxVal
              End If
          Next i

      End Function

Where to copy vba code?

  1. Press Alt + F11
  2. Insert a module into your workbook
  3. Copy (Ctrl + c) above code into the code window

Get excel 97-2003 *,xls file

Create-a-drop-down-list-containing-only-unique_vba.xls
