# Plot date ranges in a calendar

#### Table of Contents

## 1. Plot date ranges in a calendar

The image above demonstrates cells highlighted using a conditional formatting formula based on a table containing date ranges.

The calendar lets you choose year in cell D1 and the highlighted cells changes accordingly and immediately. The months are in column A and days of the days of the months are in row 2.

Check out this article Heat map yearly calendar if you want to highlight date ranges in yearly view.

This post Yet another excel calendar has a different layout yet still showing all dates in a year. There is also a monthly and daily view, however it won't allow you to add date ranges only single day events.

The following calendar Calendar – monthly view plots the events in a day instead of highlighting days.

I have used Conditional Formatting to

- highlight date ranges (green)
- highlight overlapping dates (red)
- not existing dates (black)

demonstrated in the image to the right.

The conditional formatting formula updates as you type new date ranges or edit an existing one in the table.

This gives you an overview of the date ranges that lets you easily spot any issues or errors.

### How I created "invisible" dates in cell range B3:AF14

- Formula in B3: =DATE($D$1;ROWS($A$3:$A3);B$2) + ENTER.

$D$1 is an absolute reference to a cell containing a year. - Copy cell B3 and paste into cell range B3:AF14.

Excel tries to output the entire date but the cell width is too small. That is why it looks like it does, in the image above. - Select B3:AF14
- Press CTRL + 1
- Select "Number" tab
- Select "Custom"
- Type ,,, in "Type:" window

- Press with left mouse button on OK!

The steps above hide the dates in cell range B3:AF14.

### How to highlight date ranges green

- Select B3:AF14.
- Press with left mouse button on "Home" tab
- Press with left mouse button on "Conditional formatting" button
- Press with left mouse button on "New Rule.."

- Select "Use a formula to determine which cells to format"
- Type in "Format values where this formula is true" window: =SUMPRODUCT((B3<=$I$19:$I$26)*(B3>=$E$19:$E$26))=1

- Press with left mouse button on "Format.." button
- Press with left mouse button on "Fill" tab
- Select a color (green)

- Press with left mouse button on OK!
- Press with left mouse button on OK!
- Press with left mouse button on OK!

The CF formula in step 6 above checks if the date is inside any of the date ranges, if exactly one date range is then the date cell is highlighted green.

### How to highlight overlapping date ranges red

The steps here are identical to the steps above, however, the CF formula is different.

- Select B3:AF14.
- Press with left mouse button on "Home" tab
- Press with left mouse button on "Conditional formatting" button
- Press with left mouse button on "New Rule.."
- Select "Use a formula to determine which cells to format"
- Type in "Format values where this formula is true" window: =SUMPRODUCT((B3<=$I$19:$I$26)*(B3>=$E$19:$E$26))>1
- Press with left mouse button on "Format.." button
- Press with left mouse button on "Fill" tab
- Select a color (red)
- Press with left mouse button on OK!
- Press with left mouse button on OK!
- Press with left mouse button on OK!

The CF formula in step 6 above checks if the date is inside any of the date ranges, if more than one date ranges are then the date cell is highlighted red.

### How to highlight not existing dates black

- Select B3:AF14.
- Press with left mouse button on "Home" tab
- Press with left mouse button on "Conditional formatting" button
- Press with left mouse button on "New Rule.."
- Select "Use a formula to determine which cells to format"
- Type in "Format values where this formula is true" window:=MONTH(B3)<>ROWS($B$3:$B3)
- Press with left mouse button on "Format.." button
- Press with left mouse button on "Fill" tab
- Select a color (black)
- Press with left mouse button on OK!
- Press with left mouse button on OK!
- Press with left mouse button on OK!

The formula in step 6 above checks that the month number is equal to the row number returned by the ROWS function. This makes sure that the date is in the correct month and not in the next month.

If it is in the next month then the cell is colored black. The following image shows the days of the months. For example, February 2010 has 28 days, the formula starts with 1 March in the next cell to the right of 28.

To hide that the cell is colored black.

### How to reorder conditional formatting rules

- Press with left mouse button on "Home" tab
- Press with left mouse button on "Conditional formatting" button
- Press with left mouse button on "Manage Rules.."

- Reorder rules using arrow buttons

Rule (applied in the order shown)

- Black
- Red
- Green

#### Conditional Formatting formulas

You will find an explanation in greater detail here:

Highlight overlapping date ranges using conditional formatting

## 2. Plot date ranges in a calendar part 2

I will in this section demonstrate a calendar that automatically highlights dates based on date ranges, the calendar populates names and corresponding dates based on the month and year selected by the user.

This is a new version of Visualize date ranges in a calendar. The workbook in this section lets you enter names and date ranges in an Excel defined Table. It allows you to add or delete names and date ranges without changing the cell references in the formulas.

Duplicate names are allowed, select year and month, days in that month are automatically calculated (row 4) and displayed accordingly.

Names whose date ranges are present in the selected month are displayed in cell range A5:A17. Dates are red if they overlap with another date range. This workbook contains no VBA code.

### What you will learn in this section

- Create a dynamic monthly calendar.
- Create a calendar that highlights date ranges green and overlapping date ranges red.
- List names accordingly based on the corresponding date ranges.
- Build Conditional formatting formulas that highlight cells based on name and date.
- Build a formula that extracts names based on a year and month.

### How this worksheet works

The animated image above shows when I select a month and the calendar instantly displays the appropriate names and dates based on the date ranges below the calendar.

Enter a value in cell B1 to change year, use the drop down list in cell B2 to select the month.

### How I created this worksheet

#### Data list validation in cell B2

- Select cell B2
- Go to tab "Data"
- Press with left mouse button on "Data Validation" button

- Select List
- Type: Jan,Feb,Mar,Apr,May,Jun,Jul,Aug,Sep,Oct,Nov,Dec in Source:
- Press with left mouse button on OK button

#### Calculate first date in selected month in cell D1

Formula:

#### Calculate last date in selected month in cell D2

Formula:

**Hide cell values in cell range D1:D2**

These steps shows you how to hide values in a cell by applying cell formatting, the value is still there but you can't see it.

- Select cell range D1:D2
- Press Ctrl + 1
- Go to "Number" tab
- Press with left mouse button on "Custom"
- Type ;;;
- Press OK

#### Calculate dates

Formula in cell B4:

Formula in cell C4:

Copy cell C4 and paste to cell range D4:AF4.

#### Create an Excel defined Table

- Select any cell in the data set that contains names and date ranges.
- Press CTRL + T to open the "Create Table" dialog box.
- Press with left mouse button on OK button.

#### Filter names in column A

Array formula in cell A5:

- Copy above array formula
- Paste in formula bar
- Press and hold Ctrl + Shift
- Press Enter
- Copy cell A5 and paste to cell range A6:A17

#### Explaining array formula in cell A5

**Step 1 - Identify records that overlap selected month**

The less than and greater than signs are logical oerpators that allows you to compare the date ranges saved in the Excel defined Table to the hidden dates in cell D1 and D2.

Cell D1 contains the first date in the selected month and cell D2 contains the last date of the selected dates.

(Table1[Start]<=$D$2)*(Table1[End]>=$D$1)

returns {1;0;0;0;1;1;0;0;0;0;0;0;1;0}

The position of each value matches the records in the Excel defined Table, for example, 1 indicates that the first record overlaps the select month June and year 2012.

0 (zero) tells us that the record does not overlap the selected year and month.

**Step 2 - Convert boolean values to corresponding relative row number**

The IF function lets you use a logical expression to determine which argument to return: *value_if_true* or *value_if_false.*

IF(*logical_test*, [*value_if_true*], [*value_if_false*])

IF((Table1[Start]<=$D$2)*(Table1[End]>=$D$1), MATCH(Table1[Start], Table1[Start], 0), "")

To create an array of numbers starting from 1 to the number of records in the Excel defined Table I use the MATCH and ROW functions.

The ROW function returns an array of numbers representing the row number for each record, however they don't start with 1 in most cases.

The MATCH function lets you convert the array to a sequence of numbers that start with 1.

returns

{1;"";"";"";5;6;"";"";"";"";"";"";13;""}.

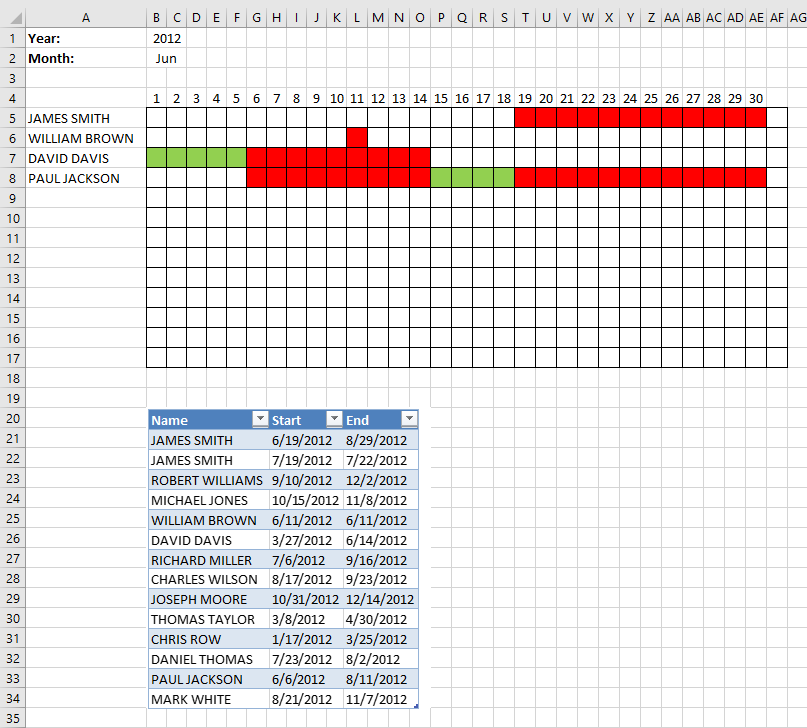

The image above shows the array next to the Excel defined Table. The array contains the relative row number of each record that overlaps the selected year and month.

**Step 3 - Extract k-th smallest row number**

In order to extract a new value in each cell I use the SMALL function with a relative cell reference that changes automatically when I copy the cell to cells below.

SMALL(array, k)

SMALL(IF((Table1[Start]<=$D$2)*(Table1[End]>=$D$1), MATCH(Table1[Start], Table1[Start], 0), ""), ROW(A1))

becomes

SMALL({1;"";"";"";5;6;"";"";"";"";"";"";13;""}, 1)

and returns 1.

**Step 4 - Return name**

The INDEX function returns a value from a given cell range based on a row and column number.

INDEX(Table1[Name], SMALL(IF((Table1[Start]<=$D$2)*(Table1[End]>=$D$1), MATCH(Table1[Start], Table1[Start], 0), ""), ROW(A1)))

becomes

INDEX(Table1[Name], 1)

and returns the first value in column Name which is James Smith.

**Step 5 - Remove errors**

When values run out the formula returns an error, the IFERROR function removes the errors and returns a blank cell instead.

For example, in cell A9 the formula becomes:

IFERROR(INDEX(Table1[Name], SMALL(IF((Table1[Start]<=$D$2)*(Table1[End]>=$D$1), MATCH(Table1[Start], Table1[Start], 0), ""), ROW(A5))), "")

becomes

IFERROR(#NUM!, "")

and returns a blank.

#### Red conditional formatting formula

Conditional formatting formula applied to cell range B5:AF17:

#### Green conditional formatting

Conditional formatting formula applied to cell range B5:AF17:
