# How to use the TIME function

**What is the TIME function?**

The TIME function returns a decimal value between 0 (zero) representing 12:00:00 AM and 0.99988426 representing 11:59:59 P.M.

Formula in cell D3:

#### Table of Contents

- TIME Function Syntax
- TIME Function Arguments
- What is time in Excel?
- TIME Function example
- TIME function - how to add hours
- TIME function - how to add minutes
- TIME function - how to add seconds
- How to calculate more than 24 hours?
- Convert time to 24 hour clock
- Get Excel *.xlsx file
- How to AVERAGE time
- How to sum overlapping time
- How to calculate overlapping time ranges

## 1. TIME Function Syntax

TIME(*hour*, *minute*, *second*)

## 2. TIME Function Arguments

hour |
Required. A number between 0 and 32767 represents the hour. |

minute |
Required. A number between 0 and 32767 represents the minute. |

second |
Required. A number between 0 and 32767 represents the second. |

## 3. What is time in Excel?

Excel time value is a number equal to or larger than 0 (zero) and smaller than 1, formatted as a time value. One hour is 1/24, there are 24 hours in one day.

One minute is 1/1440, there are 1440 minutes in one day (60*24 = 1440). One second is 1/86400, there are 86400 seconds in one day (60*60*24 = 86400).

The following table shows whole hours, one hour is 1/24, 2 hours is 2/24, and so on.

0 - 12:00:00 AM

1/24 - 1:00:00 AM

2/24 - 2:00:00 AM

...

23/24 - 11:00:00 PM

24/24 - 12:00:00 AM

The time value is only the decimal part of a number, in other words, a value larger than or equal to 1 makes no difference, Excel uses only the decimal part of a number to create an Excel time value.

1.5 -> 0.5 -> 12:00:00 PM

The whole numbers represent dates in Excel. The whole number and the decimal part create a date and time value. Here is an example: 1.5 represents 1/1/1900 12:00 PM

## 4. TIME Function example

The TIME function creates an Excel time value meaning a number equal to or larger than 0 (zero) and smaller than 1 formatted as a time value.

Formula in cell E3:

### Explaining formula

#### Step 1 - TIME function

TIME(*hour*, *minute*, *second*)

#### Step 2 - Populate arguments

TIME(*hour*, *minute*, *second*)

hour - B3

minute - C3

second - D3

#### Step 3 - Evaluate formula

TIME(1, 30, 20)

and returns 0.062731481 (1:30:20 AM).

1 hour = 1/24

30 min = 30/1440

20 sec = 20/86400

1/24 + 30/1440 + 20/86400 = 0.062731481

### 4.1 Time function - Hour value larger than 24

An hour value greater than 23 will be divided by 24 and the remaining hours will be returned by the function.

27/24 = 1.125 The decimal part is 0.125 and is equal to 3 hours. 3/24 = 0.125

### 4.2 Time function - Minute value larger than 59

A minute value equal to or greater than 60 will be divided by 60, the whole number is hours and the remaining minutes will be minutes.

119/60 is approx. 1.983333 The TIME function returns 1:59:00 AM. 0.983333 is approx. 59 minutes.

### 4.3 Time function - Seconds value larger than 59

A "second" value equal to or greater than 60 will be divided by 60 and added to minutes, the remaining seconds are returned.

7200/86400 is approx. 0.083333 which is the same as 120 minutes or 2 hours.

## 5. TIME Function - how to add hours

Formula in cell F3:

Alternative formula:

Note, the TIME function arguments are limited to 32767. Larger values return #NUM errors.

### Explaining formula

#### Step 1 - Calculate hours in decimals

D3/24

becomes

5/24 equals 0.208333333.

#### Step 2 - Add time

B3+D3/24

becomes

0.979166667 + 5/24

becomes

0.979166667 + 0.208333333 equals 1.1875

## 6. TIME Function - how to add minutes

Formula in cell F3:

Alternative formula:

Note, the TIME function arguments are limited to 32767. Larger values return #NUM errors.

### Explaining formula

#### Step 1 - Calculate hours in decimals

The division slash charcater lets you divide numbers in an Excel formula.

D3/24

becomes

5/1440 is approx. 0.0034722

#### Step 2 - Add time

The plus sign lets you add numbers in an Excel formula.

B3+D3/1440

becomes

0.979166667 + 5/1440

becomes

0.979166667 + 0.0034722

and is approx. 0.982638889

## 7. TIME Function - how to add seconds

Formula in cell F3:

Alternative formula:

Note, the TIME function arguments are limited to 32767. Larger values return #NUM errors.

### Explaining formula

#### Step 1 - Calculate seconds in decimals

D3/24

becomes

5/86400

and is approx. 0.0000578

#### Step 2 - Add time

B3+D3/24

becomes

0.979166667 + 5/86400

becomes

0.979166667 + 0.0000578

and is approx. 0.979224537037037

## 8. How to calculate more than 24 hours?

The image above shows how to display an Excel time value larger than 1. This is possible using a different cell formatting code than the default one Excel uses.

- Select cell F3.
- Press CTRL + 1 to open the "Format Cells" dialog box.
- Select the "Custom" category.
- Use the following formatting code:

[h]:mm:ss - Press with left mouse button on OK button.

### Explaining formula in cell F3

#### Step 1 - Calculate Excel time value

Cell F3 contains an Excel time value larger than 1.

B3+B5/24

becomes

0.979166666666667 + B5/24

becomes

0.979166666666667 + 60/24

becomes

0.979166666666667 + 2.5

and returns 3.47916666666667 in cell F3. Cell F3 is formatted using the following cell formatting code: [h]:mm:ss which shows 83:30:00 in cell F3.

#### Step 2 - Verify calculation

We can easily verify the calculation.

3*24 = 72 hours

0.47916666666667 * 24 equals 11.5 hours.

72 + 11.5 = 83.5 hours -> 83:30:00

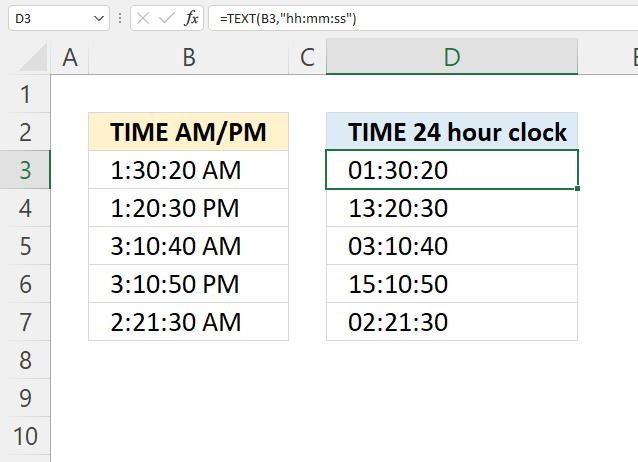

## 9. Convert time to 24 hour clock

The TEXT functionlets you convert AM/PM to a 24 hour clock.

Formula in cell D3:

### Explaining formula

#### Step 1 - TEXT function

The TEXT function converts a value to text in a specific number format.

TEXT(*value*, *format_text*)

value |
The string you want to format. You can use a cell reference here or use a text string. |

format_text |
Formatting code allows you to change the way, for example, a date or a number is displayed to the Excel user. |

#### Step 2 - Populate TEXT function arguments

TEXT(*value*, *format_text*)

value - B3

format_text - "hh:mm:ss"

hh - hours using two digits

mm - minutes (two digits)

ss - seconds (two digits)

#### Step 3 - Evaluate TEXT function

TEXT(B3,"hh:mm:ss")

becomes

TEXT(0.0627314814814815, "hh:mm:ss")

and returns 01:30:20.

1/24 + 30/1440 + 20/86400 equals 0.0627314814814815.

## 11. How to AVERAGE time

#### Table of Contents

- How to AVERAGE time
- How to enter an array formula
- Explaining formula

- How to calculate the average of multiple time differences in this format: hours, minutes, and seconds
- Get Excel *.xlsx file

### 11.1. How to AVERAGE time

The image above shows names in cells B3 to B9 and corresponding date and time values in cells C3 to C9.

The formula demonstrated in cell C11 calculates the average time of day across the dates and times listed in cells C3 through C9. However, it doesn't take the date part into the calculations which would skew the average and return an incorrect value.

This formula effectively ignores the date part and focuses only on the time of day. The result is the average time, which in this case is shown as 12:24 PM in cell C11.

This approach is useful when you want to find the average time regardless of the dates on which those times occurred.

Here's how it basically works:

- C3:C9 refers to the range of cells containing the date and time values.
- INT(C3:C9) extracts just the integer part of each date/time value, which represents the date portion.
- C3:C9 - INT(C3:C9) subtracts the date portion from the original date/time value, leaving only the time portion. In Excel, times are stored as fractional parts of a day.
- AVERAGE() then calculates the mean of these time values.

### 11.1.1 How to enter an array formula

You need to enter the formula as an array formula if you use an earlier version than Excel 365.

The formula above is an array formula. To enter an array formula, type the formula in a cell then press and hold CTRL + SHIFT simultaneously, now press Enter once. Release all keys.

The formula bar now shows the formula enclosed with curly brackets telling you that you entered the formula successfully. Don't enter the curly brackets yourself.

### 11.1.2 Explaining formula

An Excel date and time value is in fact a number and a decimal part formatted as a date. For example, number 1 is 1/1/1900 and 1.5 is 1/1/1900 12:00 PM. This makes it really easy to add or subtract days to dates in Excel.

#### Step 1 - Extract whole numbers

The INT function returns the integer part of a number.

INT(*number*)

INT(C3:C9)

returns {42784; 42857; ... ; 43042}.

Notice how the values lost their decimal part, only the whole numbers remains.

#### Step 2 - Extract decimals

The date part is the whole number and the decimals are the times, we can extract the time part by subtracting the original numbers with the whole numbers.

The minus sign lets you subtract a number with another number in Excel formulas.

C3:C9 -INT(C3:C9)

returns {0.0758894520549802; ... ; 0.209842259464494}

#### Step 3 - Average decmial numbers

The AVERAGE function calculates an average.

AVERAGE(*number1*, *[number2]*, ...)

AVERAGE(C3:C9 -INT(C3:C9))

becomes

AVERAGE({0.0758894520549802; ... ; 0.209842259464494})

and returns 0.516732388989892.

### 11.2. How to calculate the average of multiple time differences in this format: hours, minutes, and seconds

This example demonstrates a formula and cell formatting that allows you to calculate the mean of differences between date and time values across two columns. The cell formatting lets you show hours larger than the regular 24 hours per day meaning it shows the accumulated value in hours, minutes, and seconds.

The image shows an Excel spreadsheet with two columns of date and time data, and a calculation of the average difference between these times. Column B contains a set of dates and times, ranging from 2/18/17 1:49 AM to 11/3/17 5:02 AM. Column C contains another set of dates and times, ranging from 5/4/17 2:53 PM to 1/1/18 12:10 AM.

Date and time |
Date and time |

2/18/17 1:49 AM | 5/4/17 2:53 PM |

5/2/17 10:50 PM | 6/13/17 10:40 PM |

3/4/17 10:19 PM | 4/4/17 10:27 PM |

10/4/17 9:00 AM | 12/7/17 4:49 PM |

6/17/17 9:02 AM | 7/3/17 12:07 PM |

5/29/17 4:43 PM | 7/9/17 2:57 PM |

11/3/17 5:02 AM | 1/1/18 12:10 AM |

The formula in cell C11 calculates an average based on the differences of the Excel dates and time values in columns C and B.

Formula in cell C11:

The result shown in cell C11 is 1127:02:50, which represents 1127 hours, 2 minutes, and 50 seconds. This is equivalent to about 47 days.

This calculation gives the average time span between the dates in column B and the dates in column C. It's important to note that this method assumes that all dates in column C are later than their corresponding dates in column B. If any dates in column C are earlier, it would lead to unexpected results.

The cell C11 formatting allows to display the average time in accumulated hours, minute, and seconds instead of days, hours, minute, and seconds.

Cell formatting is applied to cell C11:

- Select cell C11.
- Press CTRL + 1 to open the "Format Cells" dialog box, see the image above.
- Press with left mouse button on "Custom" category.
- Enter a new "type": [hh]:mm:ss
- Press with left mouse button on OK button.

The difference between the two cell formats in Excel is:

- 1.
**[hh]:mm:ss**This format treats the hours as a number in square brackets, rather than a standard time format. The hours value can be greater than 24, as it represents the total number of hours, not just the hour of the day. This format is useful for displaying long durations larger than 24 hours. **hh:mm:ss**The hours value is limited to 0-23, representing the hour of the day. This format is better suited for displaying times within a 24-hour period.

If the value is 25:30:15, in the [hh]:mm:ss format it would display as 25:30:15 indicating a duration of 25 hours, 30 minutes, and 15 seconds. In the hh:mm:ss format, the same value would display as 01:30:15, which represents 1 hour, 30 minutes, and 15 seconds, however 24 hours are missing. The choice of format depends on whether you need to display durations that is longer than 24 hours or if you're working with times within a single day.

### 11.2.1 Explaining formula

An Excel date and time value is in fact a number and a decimal part formatted as a date. For example, number 1 is 1/1/1900 and 1.5 is 1/1/1900 12:00 PM. This makes it really easy to add or subtract dates in Excel.

#### Step 1 - Calculate difference between date and time values

The minus sign lets you subtract a number with another number in Excel formulas.

C3:C9-B3:B9

returns {75.5446924890348; ... ; 58.7977072514477}.

#### Step 2 - Calculate the average

The AVERAGE function calculates an average.

AVERAGE(*number1*, *[number2]*, ...)

AVERAGE(C3:C9-B3:B9)

becomes

AVERAGE({75.5446924890348; ... ; 58.7977072514477})

and returns approx. 46.96 in cell C11, however, the value is formatted to show total hours, seconds and milliseconds.

### 11.3 Get Excel *.xlsx file

## 12. How to sum overlapping time

The worksheet above shows four different time ranges in column B and C, the formula in cell C10 counts the number of overlapping minutes.

The formula uses the earliest and latest date and time value in column B and C as the range to count overlapping minutes.

#### What's on this section

- Sum overlapping time
- Sum overlapping time based on a date range
- Sum overlapping time - Excel 365

### 12.1. Sum overlapping time

Array formula in cell C10:

To enter an array formula, type the formula in a cell then press and hold CTRL + SHIFT simultaneously, now press Enter once. Release all keys.

The formula bar now shows the formula with a beginning and ending curly bracket telling you that you entered the formula successfully. Don't enter the curly brackets yourself.

### 12.1.2 Explaining formula in cell C10

The INDEX function allows you to create an array of values, in this case, minute intervals.

MIN($B$3:$B$6)+(ROW(A1:INDEX($A:$A, (MAX($C$3:$C$6)-MIN($B$3:$B$6))*1440+1))-1)/1440

returns

{43101.25, 43101.2506944444, 43101.2513888889, 43101.2520833333, 43101.2527777778, 43101.2534722222, 43101.2541666667, 43101.2548611111, 43101.2555555556, 43101.25625, 43101.2569444444}

Now check if these minute intervals are between or equal to each date and time range.

(TRANSPOSE(MIN($B$3:$B$6)+(ROW(A1:INDEX($A:$A, (MAX($C$3:$C$6)-MIN($B$3:$B$6))*1440+1))-1)/1440)>=$B$3:$B$6)*((TRANSPOSE(MIN($B$3:$B$6)+(ROW(A1:INDEX($A:$A, (MAX($C$3:$C$6)-MIN($B$3:$B$6))*1440+1))-1)/1440))<$C$3:$C$6)

returns

{1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0; 0, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0; 0, 0, 1, 1, 1, 1, 1, 1, 0, 0, 0; 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0}

The MMULT function allows you to add these values column by column.

MMULT(TRANSPOSE($B$3:$B$6^0), (TRANSPOSE(MIN($B$3:$B$6)+(ROW(A1:INDEX($A:$A, (MAX($C$3:$C$6)-MIN($B$3:$B$6))*1440+1))-1)/1440)>=$B$3:$B$6)*((TRANSPOSE(MIN($B$3:$B$6)+(ROW(A1:INDEX($A:$A, (MAX($C$3:$C$6)-MIN($B$3:$B$6))*1440+1))-1)/1440))<$C$3:$C$6))

becomes

MMULT(TRANSPOSE($B$3:$B$6^0), {1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0; 0, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0; 0, 0, 1, 1, 1, 1, 1, 1, 0, 0, 0; 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0})

becomes

MMULT({1,1,1,1}, {1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0; 0, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0; 0, 0, 1, 1, 1, 1, 1, 1, 0, 0, 0; 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0})

and returns

{1, 2, 3, 3, 2, 2, 2, 2, 1, 2, 0}

The following picture shows the array and what the MMULT function returns.

A value larger than 1 indicates an overlapping time value.

MMULT(TRANSPOSE($B$3:$B$6^0), (TRANSPOSE(MIN($B$3:$B$6)+(ROW(A1:INDEX($A:$A, (MAX($C$3:$C$6)-MIN($B$3:$B$6))*1440+1))-1)/1440)>=$B$3:$B$6)*((TRANSPOSE(MIN($B$3:$B$6)+(ROW(A1:INDEX($A:$A, (MAX($C$3:$C$6)-MIN($B$3:$B$6))*1440+1))-1)/1440))<=$C$3:$C$6))>1

becomes

{1, 2, 3, 3, 2, 2, 2, 2, 1, 2, 0}>1

and returns

{FALSE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, FALSE, TRUE, FALSE}.

Lastly, multiply with 1 to convert boolean values to numerical values and then sum the numbers.

SUM((MMULT(TRANSPOSE($B$3:$B$6^0), (TRANSPOSE(MIN($B$3:$B$6)+(ROW(A1:INDEX($A:$A, (MAX($C$3:$C$6)-MIN($B$3:$B$6))*1440+1))-1)/1440)>=$B$3:$B$6)*((TRANSPOSE(MIN($B$3:$B$6)+(ROW(A1:INDEX($A:$A, (MAX($C$3:$C$6)-MIN($B$3:$B$6))*1440+1))-1)/1440))<=$C$3:$C$6))>1)*1)

becomes

SUM({FALSE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, FALSE, TRUE, FALSE}*1)

becomes

SUM({0,1,1,1,1,1,1,1,0,1,0})

and returns 8.

### 12.2 Sum overlapping time based on a date range

The picture above shows you a different setup, it allows you to use a smaller range than the min and max date and time in B3:C5.

Formula in cell C14:

The ROW function limits the use of these formulas, if you have a range larger than 1,048,576 minutes, which is the same as the number of rows in a worksheet, you will need another solution than the one presented here.

### Get Excel *.xlsx file

How to count overlapping timev3.xlsx

### 12.3. Sum overlapping time - Excel 365

This Excel 365 formula works just like the formula in section 1.1 above, however, the SEQUENCE and LET functions simplify and shorten the formula considerably.

Dynamic array formula in cell C10:

### Explaining formula

The date and time values are actually numbers, dates are whole numbers. 1 is 1/1/1900 and the next day 1/2/1900 is 2 and so on. Decimal numbers are time values in Excel, for example:

00:00 AM is 0 (zero)

12:00 PM is 0.5

The whole number and the decimal number together form a date and time value in Excel. 1.5 is 1/1/1900 12:00 PM.

#### Step 1 - Subtract numbers

The minus sign lets you subtract numbers in Excel formulas, this example calculates a number representing the difference between the two date and time values specified in cells C9 and B9.

C9-B9

becomes

43101.2569444445 - 43101.25

and returns 0.00694444450346055

#### Step 2 - Multiply with 1440

The asterisk lets you multiply numbers in an Excel formula. There are 60 minutes in one hour, and twenty-four hours in one day. 60*24 equals 1440.

(C9-B9)*1440

becomes

0.00694444450346055*1440

and returns

10.0000000849832

#### Step 3 - Add 1

The plus sign lets you add numbers in an Excel formula.

(C9-B9)*1440+1

becomes

10.0000000849832+1

and returns

11.0000000849832

#### Step 4 - Create a sequence of numbers

The SEQUENCE function creates a list of sequential numbers.

Function syntax: SEQUENCE(rows, [columns], [start], [step])

SEQUENCE(,(C9-B9)*1440+1,0)

becomes

SEQUENCE(,11.0000000849832,0)

and returns

{0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10}.

SEQUENCE(,(C9-B9)*1440+1,0)/1440

becomes

{0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10}/1440

and returns

{0, 0.000694444444444444, 0.00138888888888889, 0.00208333333333333, 0.00277777777777778, 0.00347222222222222, 0.00416666666666667, 0.00486111111111111, 0.00555555555555556, 0.00625, 0.00694444444444444}

#### Step 5 - Add sequence to start date

B9+SEQUENCE(,(C9-B9)*1440+1,0)/1440

becomes

43101.25 + {0, 0.000694444444444444, 0.00138888888888889, 0.00208333333333333, 0.00277777777777778, 0.00347222222222222, 0.00416666666666667, 0.00486111111111111, 0.00555555555555556, 0.00625, 0.00694444444444444}

and returns

{43101.25, 43101.2506944444, 43101.2513888889, 43101.2520833333, 43101.2527777778, 43101.2534722222, 43101.2541666667, 43101.2548611111, 43101.2555555556, 43101.25625, 43101.2569444444}

#### Step 6 - Check if values in array is larger or equal to each value in cell range B3:B5

The larger than sign and the equal signs are logical operators, they return TRUE or FALSE if a condition is met or not.

(B9+SEQUENCE(,(C9-B9)*1440+1,0)/1440)>=B3:B5

becomes

{43101.25, 43101.2506944444, 43101.2513888889, 43101.2520833333, 43101.2527777778, 43101.2534722222, 43101.2541666667, 43101.2548611111, 43101.2555555556, 43101.25625, 43101.2569444444}>={43101.2506944444; 43101.2513888889; 43101.25625}

and returns

{FALSE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE;FALSE, FALSE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE;FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, TRUE, TRUE}

#### Step 7 - Check if values in array is smaller to each value in cell range B3:B5

(B9+SEQUENCE(,(C9-B9)*1440+1,0)/1440)<C3:C5

becomes

{43101.25, 43101.2506944444, 43101.2513888889, 43101.2520833333, 43101.2527777778, 43101.2534722222, 43101.2541666667, 43101.2548611111, 43101.2555555556, 43101.25625, 43101.2569444444}<{43101.2520833333; 43101.2548611111; 43101.2569444445}

and returns

{TRUE, TRUE, TRUE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE;TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, FALSE, FALSE, FALSE, FALSE;TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE}

#### Step 8 - Multiply arrays (AND logic)

The asterisk character lets you multiply numbers in an Excel formula, the equivalent function would be the PRODUCT function.

((B9+SEQUENCE(,(C9-B9)*1440+1,0)/1440)>=B3:B5)*((B9+SEQUENCE(,(C9-B9)*1440+1,0)/1440)<C3:C5)

becomes

{FALSE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE;FALSE, FALSE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE;FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, TRUE, TRUE}*{TRUE, TRUE, TRUE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE;TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, FALSE, FALSE, FALSE, FALSE;TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE}

and returns

{0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0;0, 0, 1, 1, 1, 1, 1, 0, 0, 0, 0;0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1}.

When you multiply boolean values TRUE or FALSE the result is their numerical equivalent:

TRUE = 1

FALSE = 0 (zero)

#### Step 9 - Check if result is larger than 0 (zero)

((B9+SEQUENCE(,(C9-B9)*1440+1,0)/1440)>=B3:B5)*((B9+SEQUENCE(,(C9-B9)*1440+1,0)/1440)<C3:C5)>0

becomes

{0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0;0, 0, 1, 1, 1, 1, 1, 0, 0, 0, 0;0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1}>0

and returns

{FALSE, TRUE, TRUE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE;FALSE, FALSE, TRUE, TRUE, TRUE, TRUE, TRUE, FALSE, FALSE, FALSE, FALSE;FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, TRUE, TRUE}.

#### Step 10 - Rearrange vertical values to horizontal values

The TRANSPOSE function converts a vertical range to a horizontal range, or vice versa.

Function syntax: TRANSPOSE(array)

TRANSPOSE(B3:B5^0)

becomes

TRANSPOSE({43101.2506944444; 43101.2513888889; 43101.25625}^0)

becomes

TRANSPOSE({1; 1; 1})

and returns

{1, 1, 1}.

#### Step 11 - Convert boolean values to their numerical equivalents

(((B9+SEQUENCE(,(C9-B9)*1440+1,0)/1440)>=B3:B5)*((B9+SEQUENCE(,(C9-B9)*1440+1,0)/1440)<C3:C5)>0)*1

becomes

{FALSE, TRUE, TRUE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE;FALSE, FALSE, TRUE, TRUE, TRUE, TRUE, TRUE, FALSE, FALSE, FALSE, FALSE;FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, TRUE, TRUE}*1

and returns

{0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0;0, 0, 1, 1, 1, 1, 1, 0, 0, 0, 0;0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1}

#### Step 12 - Calculate the matrix product of two arrays

The MMULT function calculates the matrix product of two arrays, an array as the same number of rows as array1 and columns as array2.

Function syntax: MMULT(array1, array2)

MMULT(TRANSPOSE(B3:B5^0),(((B9+SEQUENCE(,(C9-B9)*1440+1,0)/1440)>=B3:B5)*((B9+SEQUENCE(,(C9-B9)*1440+1,0)/1440)<C3:C5)>0)*1)

becomes

MMULT({1, 1, 1},{0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0;0, 0, 1, 1, 1, 1, 1, 0, 0, 0, 0;0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1})

and returns

{0, 1, 2, 1, 1, 1, 1, 0, 0, 1, 1}

#### Step 13 - Check if result is larger than 0 (zero)

MMULT(TRANSPOSE(B3:B5^0),(((B9+SEQUENCE(,(C9-B9)*1440+1,0)/1440)>=B3:B5)*((B9+SEQUENCE(,(C9-B9)*1440+1,0)/1440)<C3:C5)>0)*1)>0

becomes

{0, 1, 2, 1, 1, 1, 1, 0, 0, 1, 1}>0

and returns

{FALSE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, FALSE, FALSE, TRUE, TRUE}.

#### Step 14 - Convert boolean values to numerical equivalents

(MMULT(TRANSPOSE(B3:B5^0),(((B9+SEQUENCE(,(C9-B9)*1440+1,0)/1440)>=B3:B5)*((B9+SEQUENCE(,(C9-B9)*1440+1,0)/1440)<C3:C5)>0)*1)>0)*1

becomes

{FALSE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, FALSE, FALSE, TRUE, TRUE}*1

and returns

{0, 1, 1, 1, 1, 1, 1, 0, 0, 1, 1}.

#### Step 15 - Add numbers in array and return a total

The SUM function allows you to add numerical values, the function returns the sum in the cell it is entered in. The SUM function is cleverly designed to ignore text and boolean values, adding only numbers.

Function syntax: SUM(number1, [number2], ...)

SUM((MMULT(TRANSPOSE(B3:B5^0),(((B9+SEQUENCE(,(C9-B9)*1440+1,0)/1440)>=B3:B5)*((B9+SEQUENCE(,(C9-B9)*1440+1,0)/1440)<C3:C5)>0)*1)>0)*1)

becomes

SUM({0, 1, 1, 1, 1, 1, 1, 0, 0, 1, 1})

and returns 8.

#### Step 16 - Shorten formula

The LET function lets you name intermediate calculation results which can shorten formulas considerably and improve performance.

Function syntax: LET(name1, name_value1, calculation_or_name2, [name_value2, calculation_or_name3...])

SUM((MMULT(TRANSPOSE(B3:B5^0),(((B9+SEQUENCE(,(C9-B9)*1440+1,0)/1440)>=B3:B5)*((B9+SEQUENCE(,(C9-B9)*1440+1,0)/1440)<C3:C5)>0)*1)>0)*1)

y - B3:B5

x - B9+SEQUENCE(,(C9-B9)*1440+1,0)/1440

LET(y,B3:B5,x,B9+SEQUENCE(,(C9-B9)*1440+1,0)/1440,SUM((MMULT(TRANSPOSE(y^0),(((x)>=y)*((x)<C3:C5)>0)*1)>0)*1))

## 13. How to calculate overlapping time ranges

I found an old post that I think is interesting to write about today. Think of two overlapping ranges, it may be dates, times, or any numerical range, the formula demonstrated here works with everything.

This picture shows two time ranges, 06:00-13:00 (yellow) and 11:00-18:00 (green).

It is obvious that there are two overlapping hours but how do we calculate how much they overlap in Excel?

The MEDIAN function comes to the rescue, but first, let me explain the function. It returns a value that separates the higher half of a data set from the lower half. Example, MEDIAN(1,2,3) returns 2. 1 is the lower half and 3 is the higher half.

MEDIAN(1,2,3,4,5,6) returns 3.5 because there are two values (3, 4) separating the higher half (5,6) from the lower half (1,2). The average of these two values is 3.5.

### What's on this section

- Calculate overlapping hours
- Calculate total cost based on different rates per hour
- Calculate total cost based on different rates per hour (smaller formula)
- Calculate total cost based on different rates per hour across days
- Get Excel file

### 13.1. Calculate overlapping hours

We have 4 times here to remember, the start and end of time range 1 and 2.

Let see what happens if we use the MEDIAN function with the start and end value of time range 1 and only the start value of time range 2.

MEDIAN("6:00 AM", "01:00 PM", "11:00 AM") returns 11:00 AM.

And then the end of time range 2.

MEDIAN("6:00 AM", "01:00 PM", "06:00 PM") returns 01:00 PM

01:00 PM - 11:00 AM is 02:00. Two hours are overlapping.

The formula becomes

and returns 02:00.

### 13.2. Calculate total cost based on different rates per hour

The rate is 8 between 12:00 AM and 08:00 AM, 08:00 AM - 6:00 PM the rate is 5 and 6:00 PM to 12:00 AM the rate is 10.

How do we **calculate total cost** if the time range is 06:00 AM - 8:00 PM?

Count overlapping hours for the first range 00:00-08:00 and multiply with rate 8.

returns 16.

Count overlapping hours for the second range 08:00-18:00 and multiply with rate 5.

returns 50

Count overlapping hours for the second range 18:00-24:00 and multiply with rate 10.

returns 20.

Combining all formulas gives

returns 86.

### 13.2.1 I have a question for you

It would be great to build an array formula to shrink the formula above, like this one:

But it won't work, you can't use the MEDIAN function to do that. Do you know a workaround? See next section.

### 13.3. Calculate total cost based on different rates per hour (smaller formula)

The image above demonstrates a formula that calculates the total cost based on rates per hour. Check out Alex Grobermans formula in the comments section below.

The formula above won't work if you start and end spans over multiple days, see next section below.

### Explaining calculation in cell C10

#### Step 1 - Calculate hour

The HOUR function returns an integer representing the hour of an Excel time value.

HOUR(C7)

becomes

HOUR(42005.25)

and returns 6.

#### Step 2 - Create cell reference

The INDIRECT function creates a cell reference based on text values.

INDIRECT("A"&HOUR(C7)+1&":A"&HOUR(C8))

becomes

INDIRECT("A"&6+1&":A"&12)

becomes

INDIRECT("A"&7&":A"&12)

becomes

INDIRECT("A7:A12")

and returns A7:A12.

#### Step 3 - Create row numbers

The ROW function returns row numbers from a cell reference.

ROW(INDIRECT("A"&HOUR(C7)+1&":A"&HOUR(C8)))

becomes

ROW(A7:A12)

and returns {7; 8; 9; 10; 11; 12}.

#### Step 4 - Calculate frequency based on time intervals

The FREQUENCY function calculates how often values occur within a range of values and returns a vertical array of numbers. It returns an array that is one more item larger than the bins_array.

FREQUENCY(data_array, bins_array)

FREQUENCY(ROW(INDIRECT("A"&HOUR(C7)+1&":A"&HOUR(C8))), HOUR(D3:D4))

becomes

FREQUENCY({7; 8; 9; 10; 11; 12}, {8;18})

and returns {2; 4; 0}.

#### Step 5 - Multiply with rates and return a total

The SUMPRODUCT function calculates the product of corresponding values and then returns the sum of each multiplication.

SUMPRODUCT(array1, [array2], ...)

SUMPRODUCT(FREQUENCY(ROW(INDIRECT("A"&HOUR(C7)+1&":A"&HOUR(C8))), HOUR(D3:D4)), E3:E5)

becomes

SUMPRODUCT({2; 4; 0}, E3:E5)

becomes

SUMPRODUCT({2; 4; 0}, {8;5;10})

and returns 36.

### 13.4. Calculate total cost based on different rates per hour across days

Alex Groberman contributed with an interesting formula, check out that comment below. I modified that formula and came up with this in order to get it working with a range that spans over multiple days.

Array formula in cell C10:

The formula above works with all Excel versions, the formula below is smaller, however, it works only in Excel 365:

### Explaining calculation in cell C10

Press with left mouse button on the image above to see a larger version. The image shows the time range from start (cell C7) 1/1/2015 6:00 AM to end (cell C8) 1/1/2015 12:00 PM.

### 'TIME' function examples

Table of Contents How to use the NETWORKDAYS function How to use the NETWORKDAYS.INTL function How to use the NOW […]

The image above demonstartes an array formula in cell B34 that extracts empty hours in a weekly calendar. I have created […]

I have built a sheet to track time at work. It is very simple, there are 13 sheets, one for […]

### Functions in 'Date and Time' category

The TIME function function is one of 22 functions in the 'Date and Time' category.

### Excel function categories

### Excel categories

### 3 Responses to “How to use the TIME function”

### Leave a Reply

### How to comment

**How to add a formula to your comment**

<code>Insert your formula here.</code>

**Convert less than and larger than signs**

Use html character entities instead of less than and larger than signs.

< becomes < and > becomes >

**How to add VBA code to your comment**

[vb 1="vbnet" language=","]

Put your VBA code here.

[/vb]

**How to add a picture to your comment:**

Upload picture to postimage.org or imgur

Paste image link to your comment.

**Contact Oscar**

You can contact me through this contact form

how to less three small time from average time

like

08:30

07:36

06:40

05:30

08:30

09:40

rahul kushwah,

can you explain in greater detail?

Thank you.
