Working with Relational Tables in Excel

Excel 2010 has a PowerPivot feature and DAX formulas that let you work with multiple tables of data. You can connect tables to each other based on relationships. When relationships are made nothing stops you from doing lookups to related values and relational tables or sum values for a relational table.

1. Introduction

What is a relational table?

In a relational database (Microsoft Access), the data in one table is related to the data in other tables. In general, tables can be related in one of three different ways: one-to-one, one-to-many or many-to-many.  The relationship is used to cross-reference information between tables.
Source: University of Sussex

This post is not about PowerPivot and DAX formulas, it is about doing lookups in two tables and they have one column in common. This means that the columns contain the same values, however, not necessarily in the same order. This makes the two data sets related because they share a value.

The image above shows a formula in cell C14 that looks for a value, specified in cell C12, in B3:B7. The corresponding value in C3:C7 is then used do a lookup in E3:E9. The formula then returns the corresponding values in F3:F9 to C14:C16. This is possible because they share the same values in column C and in column E.

Here is an example, cell C12 contains Apple, Apple is found in cell C3 and C5. The corresponding values in C3:C7 are 1 and 3. The formula looks for 1 and 3 in E3:E9 and finds cell E3, E5 and E6. Now the formula returns values from the same rows to C14:C16, the values are "Mainco", "Matsu Fishworks" and "Culdee Fell".

I'll also demonstrate a formula that sums values in a relational table.

2. Search for values in a related table

The animated image above explains how the concept works. The following formula can return a single value but it returns multiple values if more values match. Not only does it match multiple values in the first table, it also matches multiple values in the related table as well.

Array formula in cell C14:

How to create an array formula

1. Select cell C14
2. Copy above array formula
3. Press with left mouse button on in formula bar
4. Paste array formula
5. Press and hold Ctrl + Shift
6. Press Enter

How to copy array formula

1. Select cell C14
2. Copy (Ctrl + c)
3. Select cell range C15:C17
4. Paste (Ctrl + v)

Explaining array formula in cell C14

How can I examine formula calculations in greater detail?

You can follow formula calculations quite easily using the "Evaluate Formula" feature in Excel. Select cell C14 and then go to tab "Formulas" on the ribbon. Press with mouse on "Evaluate Formula" button to open an "Evaluate" dialog box.

(The formula shown above in the Evaluate Formula" dialog box is not used in this article.)

Press with left mouse button on "Evaluate" button to see the next calculation step. I have demonstrated these calculations steps below.

Step 1 - Search for a value

The IF function has three arguments. IF(logical_test, [value_if_true], [value_if_false])

The logical_test argument contains an expression that either returns TRUE or FALSE, in this case the value in cell C12 is compared to all values in cell range B3:B7.

The corresponding value in cell range C3:C7 is returned if the expression returns TRUE and nothing is returned if FALSE.

IF($C$12=$B$3:$B$7, $C$3:$C$7, "")

becomes

IF("Apple"={"Apple"; "Banana"; "Apple"; "Lemon"; "Banana"}, {1; 2; 3; 4; 5}, "")

and returns {1;"";3;"";""}.

Step 2 - Use column in common to find matches

The MATCH function returns a number representing the relative position if a value exists in a cell range or array. It returns #N/A if not found.

MATCH($E$3:$E$9, IF($C$12=$B$3:$B$7, $C$3:$C$7, ""), 0)

becomes

MATCH($E$3:$E$9, {1;"";3;"";""}, 0)

becomes

MATCH({1; 2; 1; 3; 4; 5; 5}, {1;"";3;"";""}, 0)

and returns

{1;#N/A;1;3;#N/A;#N/A;#N/A}

Step 3 - Return row numbers

The ISERROR function is used to identify error values in the array, the IF function replaces error values with a blank "" and numbers with the corresponding row number.

IF(ISERROR(MATCH($E$3:$E$9, IF($C$12=$B$3:$B$7, $C$3:$C$7, ""), 0)), "", MATCH(ROW($F$3:$F$9), ROW($F$3:$F$9)))

becomes

IF(ISERROR({1;#N/A;1;3;#N/A;#N/A;#N/A}, "", MATCH(ROW($F$3:$F$9), ROW($F$3:$F$9)))

becomes

IF(ISERROR({1;#N/A;1;3;#N/A;#N/A;#N/A}, "", {1; 2; 3; 4; 5; 6; 7})

and returns {1; ""; 3; 4; ""; ""; ""}

Step 4 - Return a value of the cell at the intersection of  a particular row and column

The corresponding row number is used by the INDEX function to return a specific value based on row and column numbers. The SMALL function extracts a row number based on a relative cell reference and the ROW function. The relative cell reference changes when the cell is copied and pasted to cells below.

=INDEX($F$3:$F$9, SMALL(IF(ISERROR(MATCH($E$3:$E$9, IF($C$12=$B$3:$B$7, $C$3:$C$7, ""), 0)), "", MATCH(ROW($F$3:$F$9), ROW($F$3:$F$9))), ROW(A1)))

becomes

=INDEX($F$3:$F$9, SMALL({1; ""; 3; 4; ""; ""; ""}, ROW(A1)))

becomes

=INDEX($F$3:$F$9, 1)

becomes

=INDEX({"Mainco"; "Gadgetron"; "Matsu Fishworks"; "Culdee Fell"; "Trade Federation"; "KrebStar"; "Monarch Co."}, 1)

and returns Mainco in cell C14.

Back to top

3. Search for values in a related table - Excel 365

Excel 365 dynamic formula in cell F12:

Explaining the formula in cell F12

Step 1 - Compare values

The equal sign lets you compare value to value, in this case, value to values. The result is an array containing boolean values TRUE or FALSE.

B3:B7=C12

becomes

{"Apple"; "Banana"; "Apple"; "Lemon"; "Banana"}="Apple"

and returns

{TRUE; FALSE; TRUE; FALSE; FALSE}

Step 2 - Filter values based on a condition

The FILTER function extracts values/rows based on a condition or criteria.

Function syntax: FILTER(array, include, [if_empty])

FILTER(C3:C7,B3:B7=C12)

becomes

FILTER({1; 2; 3; 4; 5},{TRUE; FALSE; TRUE; FALSE; FALSE})

and returns

{1; 3}

Step 3 - Compare filtered values to values in the second table

The MATCH function returns the relative position of an item in an array that matches a specified value in a specific order.

Function syntax: MATCH(lookup_value, lookup_array, [match_type])

MATCH(E3:E9,FILTER(C3:C7,B3:B7=C12),0)

becomes

MATCH({1; 2; 1; 3; 4; 5; 5},{1; 3},0)

and returns

{1; #N/A; 1; 2; #N/A; #N/A; #N/A}

Step 4 - Check if an error has occurred

The IFNA function handles #N/A errors only, it returns a specific value if the formula returns a #N/A error.

Function syntax: IFNA(value, value_if_na)

IFNA(MATCH(E3:E9,FILTER(C3:C7,B3:B7=C12),0),0)

becomes

IFNA({1; #N/A; 1; 2; #N/A; #N/A; #N/A},0)

and returns

{1; 0; 1; 2; 0; 0; 0}

Step 5 - Filter values based on an array

It is possible to filter an array using numbers and not boolean values.

TRUE is the same as any number except 0 (zero).
FALSE is 0 (zero).

FILTER(F3:F9,IFNA(MATCH(E3:E9,FILTER(C3:C7,B3:B7=C12),0),0))

becomes

FILTER({"Mainco"; "Gadgetron"; "Matsu Fishworks"; "Culdee Fell"; "Trade Federation"; "KrebStar"; "Monarch Co."},{1; 0; 1; 2; 0; 0; 0})

and returns

{"Mainco"; "Matsu Fishworks"; "Culdee Fell"}

Back to top

4. Sum values in a related table - earlier Excel versions

This example shows a formula that searches data in G3:G9 for a value specified in C12, uses the corresponding value on the same row in F3:F9 to match values in cell range C3:C7, and adds values on the same rows in cell range D3:D7 to calculate a total.

Formula in cell C14:

Explaining formula in cell C14

Step 1 - Find the relative position in the array

The MATCH function returns the relative position of an item in an array that matches a specified value in a specific order.

Function syntax: MATCH(lookup_value, lookup_array, [match_type])

MATCH(C12,G3:G9,0)

becomes

MATCH("Gadgetron",{"Culdee Fell"; "Gadgetron"; "KrebStar"; "Mainco"; "Matsu Fishworks"; "Monarch Co."; "Trade Federation"},0)

and returns 2.

Step 2 - Get value in cell range F3:F9

The INDEX function returns a value or reference from a cell range or array, you specify which value based on a row and column number.

Function syntax: INDEX(array, [row_num], [column_num])

INDEX(F3:F9,MATCH(C12,G3:G9,0))

becomes

INDEX(F3:F9,2)

and returns 2.

Step 3 - Get value in cell range F3:F9

The SUMIF function sums numerical values based on a condition.

Function syntax: SUMIF(range, criteria, [sum_range])

SUMIF(C3:C7,INDEX(F3:F9,MATCH(C12,G3:G9,0)),D3:D7)

becomes

SUMIF(C3:C7,2,D3:D7)

and returns 300.

Back to top

5. Sum values in a related table - Excel 365

This example demonstrates an even smaller formula than the one in section 3. You need Excel 365 to use this formula.

Formula in cell C14:

Explaining the formula in cell C14

Step 1 - Compare values

The equal sign lets you compare values in an Excel formula, the result is either TRUE or FALSE.

C12=G3:G9

becomes

"Gadgetron"={"Culdee Fell"; "Gadgetron"; "KrebStar"; "Mainco"; "Matsu Fishworks"; "Monarch Co."; "Trade Federation"}

and returns

{FALSE; TRUE; FALSE; FALSE; FALSE; FALSE; FALSE}

Step 2 - Filter values

The Filter function extracts values/rows based on a condition or criteria.

Function syntax: FILTER(array, include, [if_empty])

FILTER(F3:F9,C12=G3:G9)

becomes

FILTER(F3:F9,{FALSE; TRUE; FALSE; FALSE; FALSE; FALSE; FALSE})

and returns 2.

Step 3 - Sum values

The SUMIF function sums numerical values based on a condition.

Function syntax: SUMIF(range, criteria, [sum_range])

SUMIF(C3:C7,FILTER(F3:F9,C12=G3:G9),D3:D7)

becomes

SUMIF({300;200;400;100;300},2,{1;2;3;2;5})

and returns 300.

Back to top

Get the Excel file

Search-related-tables-array-formula.xlsx

Back to top

7. Search two related tables - VBA

This section demonstrates a macro that automatically applies a filter to an Excel defined Table based on the result from a second Excel defined Table.

Let's say you do a lot of searches in two tables. The tables are related so it would be great if the second table is simultaneously filtered depending on the filtered values from the first table.

Two data sets are related if they share at least one column, that makes it possible to perform two searches or lookups.

Example,

You want to know the contact information to all vendors in product module 3. You select Module 3 in column "Product module" and vendor names appear in column "Vendor".

But contact information to each vendor is in table 2, sheet "Vendors". The macro demonstrated in the animated picture below filters table2 automatically.

The following event code is rund when worksheet "Vendors" is activated.

'Event code that runs when worksheet is activated (selected)
Private Sub Worksheet_Activate()

'Dimension variables and declare data types
Dim temp() As Variant
Dim rng As Range
Dim b As Boolean
Dim i As Single

'Redimension variable temp to make it possible to add more values later on in this macro
ReDim temp(0)

'Don't show changes on screen
Application.ScreenUpdating = False

'Save the fourth column in Table1 to object variable rng
Set rng = Worksheets("Modules").ListObjects("Table1").ListColumns(4).Range

'Copy filtered values from Table1 to growing array

'Iterate through cells in cell range except header cell
For i = 2 To rng.Cells.Count

    'Check if value is not equal to nothing
    If rng(i).Value <> "" Then

        'Check that row is not filtered out
        If rng(i).EntireRow.Hidden = False Then

            'Save value to array variable temp
            temp(UBound(temp)) = rng(i).Value

            'Increase size of array variable temp
            ReDim Preserve temp(UBound(temp) + 1)
        Else

            'Save boolean value True to variable b, this will apply a filter to the other Excel defined Table later on in this event code
            b = True
        End If
    End If
Next i

'Remove last container from array variable temp
ReDim Preserve temp(UBound(temp) - 1)

'Remove previously selected filters in table2
Worksheets("Vendors").ListObjects("Table2").Range.AutoFilter Field:=1

'Check if variable b is False and stop this macro if so
If b <> True Then Exit Sub

'Apply filtered values to table 2
Worksheets("Vendors").ListObjects("Table2").Range.AutoFilter _
    Field:=1, Criteria1:=temp, Operator:=xlFilterValues

'Show changes to Excel user
Application.ScreenUpdating = True
End Sub

7.1 Where to put the code?

1. Copy above event code.
2. Press Alt + F11 to open the Visual Basic Editor.
3. Doublepress with left mouse button on a worksheet in your workbook to open the worksheet module.
4. Paste code to worksheet module.

Get the Excel file

Search-two-tables-simultaneously.xlsm

8. Search related table based on a date and date range

I will in this section demonstrate how to search a table for a date based on a condition and then use that date to search a second table based on the first lookup value and the returned date.

1. The user enters a lookup value in cell B1.
2. A formula finds the value in the first table.
3. Then returns the corresponding date on the same rows as the found lookup value.
4. The date is returned to cell C6.
5. Another formula uses the returned date in cell C6 and the condition in cell B1 to search a second table . It then returns the matching records to cell range A9:D10 if the date is in the date range.

The formula in row 6 is really not necessary, it is only there so you can follow and understand the calculation.

Answer:

I created two tables containing random data.

Sheet1, Table1

Sheet2, Table2

Sheet 3:

Formula in cell A6:

This formula contains a reference to a table. Dragging the cell by the handle to 'pull' the formula across multiple columns won't work, it will mess up the structured references. You have to copy cell A6 and paste to cell range B6:C6.

Array formula in cell A9:

How to enter an array formula

1. Select cell A9
2. Press with left mouse button on in formula bar

3. Paste above array formula
4. Press and hold Ctrl + Shift
5. Press Enter

Copy cell A9 and paste to cell range B9:D9. Copy cell range A9:D9 and paste to cell range A10:D14.

Explaining formula in cell A9

This formula does not need the calculations returned in row 6 in order to return the correct records.

Step 1 - Find the date

The MATCH function allows you to search a column for a specific value, it returns the relative position of the found value. For example, value "BB" is found in the second row so the MATCH function returns 2.

INDEX(Table1[File date create], MATCH(Sheet3!$B$1, Table1[Client name], 0))

becomes

INDEX(Table1[File date create], MATCH("BB", Table1[Client name], 0))

becomes

INDEX(Table1[File date create], MATCH("BB", {"AA"; "BB"; "CC"; "DD"; "EE"}, 0))

becomes

INDEX(Table1[File date create], 2)

and returns 6/9/2012.  I recommend that you read How Excel Stores Times if you want to know how Excel handles dates.

Step 2 - Check if date is smaller than or equal to the end dates in Table2

The smaller than sign is a logical operator that compares the date to each date in column "Service end date" in Table 2, it returns TRUE or FALSE.

(INDEX(Table1[File date create], MATCH(Sheet3!$B$1, Table1[Client name], 0))<=Table2[Service end date])

becomes

(41069<={41000; 41072; 41167; 40987; 41028; 40958; 41069; 41104; 41117; 41030})

and returns {FALSE; TRUE; TRUE; FALSE; FALSE; FALSE; TRUE; TRUE; TRUE; FALSE}.

Step 3 - Check if date is larger than or equal to the start dates in Table2

The larger than sign is also a logical operator that compares the found date to each date in column "Service start date" in Table 2, it also returns TRUE or FALSE.

INDEX(Table1[File date create], MATCH(Sheet3!$B$1, Table1[Client name], 0))>=Table2[Service start date])

becomes

41069<=Table2[Service start date])

becomes

41069<={40987; 41062; 41153; 40961; 41021; 40950; 41061; 41102; 41109; 40969}

and returns

{FALSE; FALSE; TRUE; FALSE; FALSE; FALSE; FALSE; TRUE; TRUE; FALSE}

Step 4 - Check condition

The equal sign lets you compare the value in cell B1 to all values in column "Client name" in Excel Table named Table2.

$B$1=Table2[Client name]

becomes

"BB"={"AA"; "BB"; "CC"; "DD"; "EE"; "AA"; "BB"; "CC"; "DD"; "EE"}

and returns

{FALSE; TRUE; FALSE; FALSE; FALSE; FALSE; TRUE; FALSE; FALSE; FALSE}

Step 5 - Multiply arrays

All conditions must be TRUE in order to return the correct rows, we can accomplish that by multiplying all arrays.

The parentheses is used to control the order of calculation, we want to perform the comparisons before we multiply the arrays.

(INDEX(Table1[File date create], MATCH(Sheet3!$B$1, Table1[Client name], 0))<=Table2[Service end date])*(INDEX(Table1[File date create], MATCH(Sheet3!$B$1, Table1[Client name], 0))>=Table2[Service start date])*($B$1=Table2[Client name])

becomes

{FALSE; TRUE; TRUE; FALSE; FALSE; FALSE; TRUE; TRUE; TRUE; FALSE}*{FALSE; FALSE; TRUE; FALSE; FALSE; FALSE; FALSE; TRUE; TRUE; FALSE}*{FALSE; TRUE; FALSE; FALSE; FALSE; FALSE; TRUE; FALSE; FALSE; FALSE}

and returns

{0; 1; 0; 0; 0; 0; 1; 0; 0; 0}.

Step 6 - Return the corresponding row number

The IF function replaces the 1's with the corresponding row number and 0's with nothing (blank).

IF((INDEX(Table1[File date create], MATCH(Sheet3!$B$1, Table1[Client name], 0))<=Table2[Service end date])*(INDEX(Table1[File date create], MATCH(Sheet3!$B$1, Table1[Client name], 0))>=Table2[Service start date])*($B$1=Table2[Client name]), MATCH(ROW(Table2[Client name]), ROW(Table2[Client name])), "")

becomes

IF({0; 1; 0; 0; 0; 0; 1; 0; 0; 0}, MATCH(ROW(Table2[Client name]), ROW(Table2[Client name])), "")

becomes

IF({0; 1; 0; 0; 0; 0; 1; 0; 0; 0}, {1; 2; 3; 4; 5; 6; 7; 8; 9; 10}, "")

and returns

{"";2;"";"";"";"";7;"";"";""}.

Step 7 - Calculate k-th smallest row number

The SMALL function has the ability to return the k-th smallest number from a cell range or array.

SMALL(array, k)

SMALL(IF((INDEX(Table1[File date create], MATCH(Sheet3!$B$1, Table1[Client name], 0))<=Table2[Service end date])*(INDEX(Table1[File date create], MATCH(Sheet3!$B$1, Table1[Client name], 0))>=Table2[Service start date])*($B$1=Table2[Client name]), MATCH(ROW(Table2[Client name]), ROW(Table2[Client name])), ""), ROWS($A$1:A1))

becomes

SMALL({"";2;"";"";"";"";7;"";"";""}, ROWS($A$1:A1))

The ROWS function uses a cell reference that grows automatically when you copy the cell and paste to cells below, this allows the formula to return different values in each cell.

SMALL({"";2;"";"";"";"";7;"";"";""}, ROWS($A$1:A1))

becomes

SMALL({"";2;"";"";"";"";7;"";"";""}, 1)

and returns 2.

Step 8 - Return record

The INDEX function lets you fetch a value from a specific cell range based on a row number and a column number.

INDEX(Table2, SMALL(IF((INDEX(Table1[File date create], MATCH(Sheet3!$B$1, Table1[Client name], 0))<=Table2[Service end date])*(INDEX(Table1[File date create], MATCH(Sheet3!$B$1, Table1[Client name], 0))>=Table2[Service start date])*($B$1=Table2[Client name]), MATCH(ROW(Table2[Client name]), ROW(Table2[Client name])), ""), ROWS($A$1:A1)), COLUMNS($A$1:A1))

becomes

INDEX(Table2, 2, COLUMNS($A$1:A1))

The COLUMNS function uses a cell reference that grows automatically when you copy the cell and paste to cells to the right, this allows the formula to return different values in each cell.

INDEX(Table2, 2, COLUMNS($A$1:A1))

becomes

INDEX(Table2, 2, 1)

and returns "BB" in cell A9.

Step 9 - Remove errors

The IFERROR function removes errors when the formula runs out of values, however, be careful with this function. It removes all kinds of formula errors which may make it harder for you to troubleshoot and find errors.

Get the Excel file

Nena.xlsx

9. Highlight lookups in relational tables

This article demonstrates a worksheet that highlights lookups across relational tables. I am using Excel defined Tables, if you add more rows to the Excel tables, the conditional formatting expands automatically.

The Excel user enters a value in cell C21 and the conditional formatting formulas applied to all three Excel Tables highlights values based on the relationship between tables and the search value.

The search value in cell C21 is found in B7, the corresponding value on the same row in Table1 is in cell C7. That value is used to do another lookup in column Category Table2 and four records are found.

Table2 has values in column Company in common with Table3 column Company, this relationship is used to highlight the corresponding values in column "Sales persons".

What is a relational table?

In a relational database (Microsoft Access), the data in one table is related to the data in other tables. In general, tables can be related in one of three different ways: one-to-one, one-to-many or many-to-many.  The relationship is used to cross-reference information between tables.
Source: University of Sussex

How to apply Conditional Formatting?

1. Select the first Excel Table (cell range B5:C19).
2. Go to tab "Home" on the ribbon.

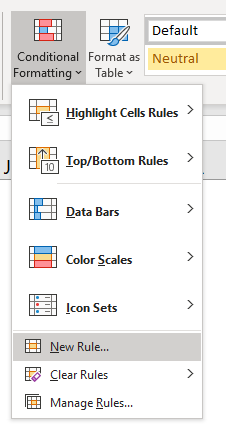

3. Press with left mouse button on the "Conditional Formatting" button.

4. Press with left mouse button on "New Rule..." and a dialog box appears.

5. Press with left mouse button on "Use a formula to determine which cells to format".
6. Type the formula below in "Format values where this formula is true:"
7. Press with left mouse button on "Format" button.

8. Go to tab "Fill.
9. Pick a color.
10. Press with left mouse button on OK button.
11. Press with left mouse button on OK button.
12. Repeat steps with the remaining Excel Tables and the corresponding CF formulas described below.

Conditional formatting formula applied to Excel Table Table1

You need to use the INDIRECT function to be able to reference an Excel defined Table in a Conditional Formatting formula. Table1[@Item] is a "structured reference" which is a way to reference Excel Tables, the @ character tells Excel to use only the cell in the same row as the Conditional Formatting formula in column Item.

This allows Excel to compare each value in column Item with the value specified in cell $C$21. This cell reference is an absolute cell reference which you can tell by the dollar characters ($). An absolute cell reference is locked to a specific cell and does not change when the Conditional Formatting formula moves to the next cell.

We do want it to always compare the value in cell C21 with all values in column Item, no matter what.

Conditional formatting formula applied to Excel Table Table2

Explaining Conditional Formatting formula in Table2

The steps below demonstrate what is calculated by the Conditional Formatting formula in cell E5.

Step 1 - Find matching items

The MATCH function returns the relative position of the matching value in column Item Table1.

MATCH($C$21, INDIRECT("Table1[Item]"), 0)

becomes

MATCH("Jig saw", {"Drill driver"; "Angle grinder"; "Jig saw"; "Gas frame nailer"; "Table saw"; "Router"; "Mitre saw"; "Jointing machine"; "Random orbit sander"; "Planer"; "Combi drill"; "Impact wrench"; "Circular saw"; "Rotary hammer drill"; "Biscuit joiner"}, 0)

and returns 3. "Jig saw" is on the third row in column Item Table1.

Step 2 - Return the value on the same row from column Category

The INDEX function returns a value from column Category based on the relative row number returned from the MATCH function.

INDEX(INDIRECT("Table1[Category]"), MATCH($C$21, INDIRECT("Table1[Item]"), 0))

becomes

INDEX(INDIRECT("Table1[Category]"), 3)

becomes

INDEX({"A";"B";"C";"D";"A";"B";"C";"D";"A";"B";"C";"D";"A";"B";"C"}, 3)

and returns "C".

Step 3 - Compare value in column Category Table 1 with Category Table2

INDEX(INDIRECT("Table1[Category]"), MATCH($C$21, INDIRECT("Table1[Item]"), 0))=INDIRECT("Table2[@Category]")

becomes

"C"=INDIRECT("Table2[@Category]")

becomes

"C"="A"

returns FALSE. Cell E5 in Table2 is not highlgihted.

Conditional formatting formula applied to Excel Table Table3

The animated image above shows what happens when different search conditions are used.

Get the Excel file

Conditional-formatting-in-related-tables.xlsx

10. Merge two relational data sets

This section demonstrates how to merge two relational data sets before creating a Pivot table. A Pivot Table is limited to one table (data source) when you are working with relational data and I want to calculate the sales figures for each salesperson.

The image above shows one Excel table to the right that contains the product, price, and the company. The Excel Table to the left shows the salespersons and the corresponding company, a salesperson may work with multiple companies.

10.1. Create Excel Tables

I highly recommend Excel Tables, they save you a lot of time if you need to add more data to your data set and they have other useful features as well. You don't need to update the cell references each time you add data, however, you still need to refresh the Pivot Table.

1.  Select all cells you want to convert to an Excel Table.
2. Press CTRL + T to create an Excel Table, a dialog box is displayed.
3. Enable the checkbox if the Table has headers.
4. Press with left mouse button on OK button.

Excel applies automatically cell formatting to a new Excel Table, you can change the Table style if you don't like it.

Select any cell in the Excel Table, go to tab "Table Design" on the ribbon and select a new Tables Style if you prefer something else.

Back to top

10.2. Add a column to an Excel Table

Excel expands the Excel defined Table automatically if you enter a value in an adjacent cell. Let's look for data in the first table [Table1].

1. Select cell G2 which is the adjacent cell in this case, see image above.
2. Type or copy/paste the following formula:
   =INDEX(Table1[Salesperson], MATCH([@Company], Table1[Company], 0))
3. Press Enter.

Another great feature is that the Excel defined Table automatically copies formulas to all cells in a column which you will see after you pressed Enter in the third step above.

10.2.1 Explaining formula

The formula you entered in cell G2 is actually better than a VLOOKUP formula, it allows you to search any column and the column you return values from is not hardcoded into the formula which may be a problem if you insert more columns to a data table.

Step 1 - Find relative position

The MATCH function has three arguments, the first argument is a cell reference to a cell on the same row in column Company as the cell you are currently adding the formula to. [@Company] It is called a structured reference and is special to Excel Tables.

[@Company] does not contain a reference to a Table name, the formula is located in the same Table so the Table name is not needed.

The second argument is a structured reference to all values in column Company in Table1 Table1[Company] and the third argument 0 (zero) tells Excel to perform an exact match.

MATCH(lookup_value, lookup_array, [match_type])

becomes

MATCH([@Company], Table1[Company], 0)

becomes

MATCH("MARS Industries", {"MARS Industries"; "The Lanford Lunch Box"; "Minuteman Cafe"; "Springfield Beans"; "Smith and Co."; "Sixty Second Avenue"; "Cyberdyne Systems"; "Osato Chemicals"; "Klimpys"; "Corellian"}, 0)

and returns 1. "MARS Industries" is in the first position in the array.

Step 2 - Get value

The INDEX function returns a value from a given cell range or array based on a row and column number. The column number is optional.

INDEX(array, [row_num], [column_num])

becomes

INDEX(Table1[Salesperson], MATCH([@Company], Table1[Company], 0))

becomes

INDEX(Table1[Salesperson], 1)

and returns the first value from column Salesperson in Table1 which is "Kirti Whitt".

The Excel Table has now the corresponding salesperson next to the company name.

If you are looking for more examples on merging two data lists, check this post: Merge lists with criteria

Back to top

10.3. Create Pivot Table

If you are new to Pivot Tables don't freak out, they are so useful that I recommend you take time to get to know them better.

A Pivot Table allows you to quickly create totals based on conditions you specify, there is no need to build complicated formulas.

The speed the Pivot Table runs tasks is incredible. It is one of the greatest built-in features in Excel, in my opinion.

1. Select any cell in Table2, the table to the right.
2. Go to tab "Insert" on the ribbon.
3. Press with left mouse button on "Pivot Table" button and a dialog box is diplayed, see image below.

4. Press with left mouse button on OK button. This will create an empty Pivot Table in a new worksheet.

Back to top

10.4. Set up Pivot Table

The image above shows a Pivot Table to the left and the corresponding task pane to the right. The task pane contains a list of fields based on headers in your Excel Table, you can drag these fields to different areas below which are:

• Report Filter
• Column Labels (horizontally)
• Row Labels (vertically)
• Values

Follow the simple instructions below see how much each salesperson has sold and to what company.

1. Drag Price to Values area.
2. Drag Company to Row Labels area.
3. Drag Salesperson to Column Labels area.

The Report Filter lets you examine the data even deeper, simply drag a field to the Report Filter and a drop down list shows up above the Pivot Table. The drop down list contains items you may want to use as a filter condition.

Back to top

Get the Excel file

Merge-two-related-tables.xlsx

Back to top

11. Working with three relational tables

I will in this section demonstrate four formulas that do lookups, extract unique distinct and duplicate values and sums numbers across three relational data sets using Excel formulas.

The image above shows a search value in cell C19, it is used as a search condition in column B and a matching value is found in cell B8. The corresponding value in column C is cell C8 which is then used do a second lookup in another table next to the first table.

The value in cell C8 is found in column E four times, they are E4, E8, E12 and E15. The formula now uses the values on the same row in column F to do a third lookup in column H.

Six matches are found in column H and the values on the same rows from colmn I are returned to cell range C21:C26.

What is a relational table?

In a relational database (Microsoft Access), the data in one table is related to the data in other tables. In general, tables can be related in one of three different ways: one-to-one, one-to-many or many-to-many.  The relationship is used to cross-reference information between tables.
Source: University of Sussex

11.1 Lookups in three related tables and return multiple values

The animated picture above shows you how the array formula works, it looks for the Item "Router" in Item column in the first table (column B and C). The corresponding Category is B.

In table two (column E and F) there are 4 matches to Category "B". The corresponding companies in table 2 are "Gizmonic Institute", "Ewing Oil", "Sample Company" and "Mishima Zaibatsu".

In table 3 (column H and I) there are six matches to category "Company" and the adjacent Sales persons are returned in cell range C21:C27.

Array formula in cell range C21:

11.1.1 How to create an array formula

1. Copy above array formula
2. Select cell C21
3. Press with left mouse button on in formula bar

4. Paste array formula (Ctrl + v)
5. Press and hold Ctrl+ Shift
6. Press Enter
7. Release all keys

The array formula is now surrounded by curly brackets, like this: {=array_formula}

11.1.2 How to copy array formula

1.  Select cell C21
2. Copy cell (Ctrl + c)
3. Select cell range C22:C27
4. Paste (Ctrl + v)

11.1.3 Explaining lookup array formula in cell C21

Step 1 - Check whether a condition is met and return corresponding Table1[Category] value

IF($C$19=Table1[Item],Table1[Category],"")

becomes

IF("Router" = {"Drill driver"; "Angle grinder"; "Jig saw"; "Gas frame nailer"; "Table saw"; "Router"; "Mitre saw"; "Jointing machine"; "Random orbit sander"; "Planer"; "Combi drill"; "Impact wrench"; "Circlar saw"; "Rotary hammer drill"; "Biscuit joiner"}, {"A"; "B"; "C"; "D"; "A"; "B"; "C"; "D"; "A"; "B"; "C"; "D"; "A"; "B"; "C"} , "")

and returns

{"";"";"";"";"";"B";"";"";"";"";"";"";"";"";""}

Step 2 - Return the relative position of an item in an array that matches a specified value

MATCH(Table2[Category], IF($C$19=Table1[Item], Table1[Category], ""), 0)

becomes

MATCH(Table2[Category], {"";"";"";"";"";"B";"";"";"";"";"";"";"";"";""}, 0)

becomes

MATCH({"A"; "B"; "C"; "A"; "D"; "B"; "A"; "C"; "D"; "B"; "C"; "C"; "B"; "A"; "D"}, {"";"";"";"";"";"B";"";"";"";"";"";"";"";"";""}, 0)

and returns

{#N/A; 6; #N/A; #N/A; #N/A; 6; #N/A; #N/A; #N/A; 6; #N/A; #N/A; 6; #N/A; #N/A}

Step 3 -  Check whether a condition is met and return corresponding Table2[Company] value

IF(ISERROR(MATCH(Table2[Category], IF($C$19=Table1[Item], Table1[Category], ""), 0)), "", Table2[Company])

becomes

IF(ISERROR({#N/A; 6; #N/A; #N/A; #N/A; 6; #N/A; #N/A; #N/A; 6; #N/A; #N/A; 6; #N/A; #N/A}), "", Table2[Company])

becomes

IF(ISERROR({#N/A; 6; #N/A; #N/A; #N/A; 6; #N/A; #N/A; #N/A; 6; #N/A; #N/A; 6; #N/A; #N/A}), "", {"Global Dynamics"; "Gizmonic Institute"; "Initech"; "Northern Railway"; "Sixty Second Avenue"; "Ewing Oil"; "Sonky Rubber Goods"; "Foo Bars"; "Initech"; "Sample Company"; "Gizmonic Institute"; "Energy Corporation"; "Mishima Zaibatsu"; "Monarch Co."; "Industrial Automation"})

and returns

{""; "Gizmonic Institute"; ""; ""; ""; "Ewing Oil"; ""; ""; ""; "Sample Company"; ""; ""; "Mishima Zaibatsu"; ""; ""}

Step 4 - Return the relative position of an item in an array that matches a specified value

MATCH(Table3[Company], IF(ISERROR(MATCH(Table2[Category], IF($C$19=Table1[Item], Table1[Category], ""), 0)), "", Table2[Company]), 0)

becomes

MATCH({"Sample Company"; "Energy Corporation"; "Initech"; "Gizmonic Institute"; "Northern Railway"; "Sonky Rubber Goods"; "Sample Company"; "Monarch Co."; "Industrial Automation"; "Ewing Oil"; "Gizmonic Institute"; "Initech"; "Foo Bars"; "Sixty Second Avenue"; "Mishima Zaibatsu"}, {""; "Gizmonic Institute"; ""; ""; ""; "Ewing Oil"; ""; ""; ""; "Sample Company"; ""; ""; "Mishima Zaibatsu"; ""; ""}, 0)

and returns

{10; #N/A; #N/A; 2; #N/A; #N/A; 10; #N/A; #N/A; 6; 2; #N/A; #N/A; #N/A; 13}

Step 5 - Check whether a condition is met and return row number

IF(ISERROR(MATCH(Table3[Company], IF(ISERROR(MATCH(Table2[Category], IF($C$19=Table1[Item], Table1[Category], ""), 0)), "", Table2[Company]), 0)), "", MATCH(ROW(Table3[Sales persons]), ROW(Table3[Sales persons])))

becomes

IF(ISERROR({10; #N/A; #N/A; 2; #N/A; #N/A; 10; #N/A; #N/A; 6; 2; #N/A; #N/A; #N/A; 13}), "", MATCH(ROW(Table3[Sales persons]), ROW(Table3[Sales persons])))

becomes

IF(ISERROR({10; #N/A; #N/A; 2; #N/A; #N/A; 10; #N/A; #N/A; 6; 2; #N/A; #N/A; #N/A; 13}), "", {1; 2; 3; 4; 5; 6; 7; 8; 9; 10; 11; 12; 13; 14; 15})

and returns

{1;"";"";4;"";"";7;"";"";10;11;"";"";"";15}

Step 6 - Return the k-th smallest row number

SMALL(array, k)

SMALL(IF(ISERROR(MATCH(Table3[Company], IF(ISERROR(MATCH(Table2[Category], IF($C$19=Table1[Item], Table1[Category], ""), 0)), "", Table2[Company]), 0)), "", MATCH(ROW(Table3[Sales persons]), ROW(Table3[Sales persons]))), ROW(A1))

becomes

SMALL({1;"";"";4;"";"";7;"";"";10;11;"";"";"";15}, ROW(A1))

and returns 1

Step 7 - Return a reference of the cell at the intersection of a particular row and column

INDEX(Table3[Sales persons], SMALL(IF(ISERROR(MATCH(Table3[Company], IF(ISERROR(MATCH(Table2[Category], IF($C$19=Table1[Item], Table1[Category], ""), 0)), "", Table2[Company]), 0)), "", MATCH(ROW(Table3[Sales persons]), ROW(Table3[Sales persons]))), ROW(A1)))

becomes

INDEX(Table3[Sales persons], 1)

becomes

INDEX({"Simeon Fernandes"; "Corydon Keck"; "Hija Hanna"; "Dana Leak"; "Triston Rigsby"; "Cyril Strong"; "Cyril Strong"; "Corydon Keck"; "Hija Hanna"; "Kason Leonard"; "Lewis Moya"; "Kason Leonard"; "Lewis Moya"; "Jaden Bonds"; "Doloris Hawley"}, 1)

and returns "Simeon Fernandes" in cell C21.

11.2 Filter unique distinct values from three related tables

There are two records of Salesperson "Simeon Fernandes" and Company "Sample Company" in the last table. Filtered Salespersons in cell range C21:C25 return Simeon Fernandes only once.

Array formula in cell range C21:

How to create an array formula

How to copy array formula

11.3 Filter duplicates from three related tables

Array formula in cell C21:

How to create an array formula

How to copy array formula

11.4 Sum values from three related tables

Array formula in cell C21:

How to create an array formula

How to copy array formula

Get the Excel file

Working-with-3-related-tables2.xlsx

12. Extract unique distinct values from a relational table

In this post, I am going to show you how to extract unique distinct values and duplicates using a formula, from a relational table. The image above shows a search value in cell B19, it is used by the formula to look for matches in A2:A16.

The formula finds a match in cell A16 and uses the corresponding value in cell B16 to do a second search in D2:D16, the two tables share values defined in B2:B16 and in D2:D16.

This makes it possible to perform searches across data sets, the value in cell B16 is found in cells D2, D8, D12 and D14. The corresponding cells in E2:E16 are E2, E8, E12 and E14, however, cell E2 and E8 contains duplicate values and the formula returns only one instance of those two values in cell range B21:B23.

In a previous post I described how to do lookups in a related table.

Table of Contents

• Unique distinct values
• Duplicate values

What is a relational table?

In a relational database (Microsoft Access), the data in one table is related to the data in other tables. In general, tables can be related in one of three different ways: one-to-one, one-to-many or many-to-many.  The relationship is used to cross-reference information between tables. Source: University of Sussex

12.1 Unique distinct values

Array formula in cell B21:

To enter an array formula you copy above formula and paste to a cell. Press and hold CTRL and Shift simultaneously, then press Enter once. Release all keys.

The formula is now surrounded with curly brackets, don't enter these characters yourself, they appear automatically. {=formula}

Copy cell B21 and paste to cells below or simply select cell B21 and press and hold with left mouse button on the black dot located at the bottom right corner of the cell. Then drag with mouse down to cells below as far as needed, release left mouse button.

12.1.1 Explaining formula in cell B21

The "Evaluate formula" feature lets you examine a formula calculation in more detail, simply select cell B21 and then go to tab "Formulas" on the ribbon.

Press with mouse on "Evaluate formula" button to open the Evaluate Formula dialog box, the "Evaluate" button located on the dialog box takes you through the calculation step by step which is great if you want to troubleshoot or simply understand a formula.

(The image above does not show the actual formula used in this example.)

Step 1 - Find values equal to search value

The IF function has three arguments, IF(logical_test, [value_if_true], [value_if_false]). The first argument contains a logical expression, it returns an array containing values TRUE or FALSE.

The second argument will run if the logical expression returns TRUE and the third will run if the value is FALSE.

IF($B$19=Table1[Item], Table1[Company], "")

becomes

IF("Biscuit joiner"=Table1[Item], Table1[Company], "")

becomes

IF("Biscuit joiner"={"Drill driver"; "Angle grinder"; "Jig saw"; "Gas frame nailer"; "Table saw"; "Router"; "Mitre saw"; "Jointing machine"; "Random orbit sander"; "Planer"; "Combi drill"; "Impact wrench"; "Circlar saw"; "Rotary hammer drill"; "Biscuit joiner"}, Table1[Company], "")

becomes

IF("Biscuit joiner"={"Drill driver"; "Angle grinder"; "Jig saw"; "Gas frame nailer"; "Table saw"; "Router"; "Mitre saw"; "Jointing machine"; "Random orbit sander"; "Planer"; "Combi drill"; "Impact wrench"; "Circlar saw"; "Rotary hammer drill"; "Biscuit joiner"}, {"Kumatsu Motors"; "Roboto Industries"; "Galaxy Corp"; "Galaxy Corp"; "Galaxy Corp"; "Roboto Industries"; "Kumatsu Motors"; "Roboto Industries"; "Roboto Industries"; "Kumatsu Motors"; "Kumatsu Motors"; "Kumatsu Motors"; "Roboto Industries"; "Kumatsu Motors"; "Galaxy Corp"}, "")

and returns

{"";"";"";"";"";"";"";"";"";"";"";"";"";"";"Galaxy Corp"}

Step 2 - Find relational values that corresponds to search value

The MATCH function returns the relative position of an item in an array or cell range that matches a specified value in a specific order.

MATCH(Table2[Company], IF($B$19=Table1[Item], Table1[Company], ""), 0)

becomes

MATCH(Table2[Company], {"";"";"";"";"";"";"";"";"";"";"";"";"";"";"Galaxy Corp"}, 0)

becomes

MATCH({"Galaxy Corp"; "Kumatsu Motors"; "Kumatsu Motors"; "Roboto Industries"; "Roboto Industries"; "Kumatsu Motors"; "Galaxy Corp"; "Kumatsu Motors"; "Roboto Industries"; "Roboto Industries"; "Galaxy Corp"; "Kumatsu Motors"; "Galaxy Corp"; "Kumatsu Motors"; "Roboto Industries"}, {"";"";"";"";"";"";"";"";"";"";"";"";"";"";"Galaxy Corp"}, 0)

and returns

{15; #N/A; #N/A; #N/A; #N/A; #N/A; 15; #N/A; #N/A; #N/A; 15; #N/A; 15; #N/A; #N/A}

This array shows us where the matches are in the column. 15 is in first, seventh, eleventh and thirteenth position.

Step 3 - Identify errors

The formula errors out if we don't get rid of the error values, the ISERROR function returns TRUE if the value is an error and FALSE if not.

ISERROR(MATCH(Table2[Company], IF($B$19=Table1[Item], Table1[Company], ""), 0))

becomes

ISERROR({15; #N/A; #N/A; #N/A; #N/A; #N/A; 15; #N/A; #N/A; #N/A; 15; #N/A; 15; #N/A; #N/A})

and returns

{FALSE; TRUE; TRUE; TRUE; TRUE; TRUE; FALSE; TRUE; TRUE; TRUE; FALSE; TRUE; FALSE; TRUE; TRUE}

step 4 - Avoid duplicate values

The COUNTIF function has two arguments COUNTIF(range, criteria), the first argument has an expanding cell reference that grows when the cell is copied to cells below. This makes it aware of previously displayed values and we can now avoid duplicates.

COUNTIF($B$20:B20,Table2[Sales persons])

becomes

COUNTIF("",Table2[Sales persons])

and returns

{0;0;0;0;0;0;0;0;0;0;0;0;0;0;0}

This array tells us that no values have been shown above cell B21.

Step 5 - Add arrays (OR logic)

By adding the two arrays we apply OR logic meaning that TRUE + TRUE = TRUE. FALSE + TRUE = TRUE. TRUE + FALSE = TRUE and FALSE + FALSE = FALSE.

Excel automatically converts boolean values to their numerical equivalents when the four basic arithmetic operations are preformed. Addition, subtraction, multiplication, and division.

(ISERROR(MATCH(Table2[Company], IF($B$19=Table1[Item], Table1[Company], ""), 0)))+COUNTIF($B$20:B20,Table2[Sales persons])

becomes

{FALSE; TRUE; TRUE; TRUE; TRUE; TRUE; FALSE; TRUE; TRUE; TRUE; FALSE; TRUE; FALSE; TRUE; TRUE} + {0;0;0;0;0;0;0;0;0;0;0;0;0;0;0}

and returns

{0;1;1;1;1;1;0;1;1;1;0;1;0;1;1}

Step 6 - Replace boolean values with row numbers and blanks

IF((ISERROR(MATCH(Table2[Company], IF($B$19=Table1[Item], Table1[Company], ""), 0)))+COUNTIF($B$20:B20,Table2[Sales persons]), "", MATCH(ROW(Table2[Company]), ROW(Table2[Company])))

becomes

IF({0;1;1;1;1;1;0;1;1;1;0;1;0;1;1}, "", MATCH(ROW(Table2[Company]), ROW(Table2[Company])))

becomes

IF({0;1;1;1;1;1;0;1;1;1;0;1;0;1;1}, "", {1; 2; 3; 4; 5; 6; 7; 8; 9; 10; 11; 12; 13; 14; 15})

and returns

{1;"";"";"";"";"";7;"";"";"";11;"";13;"";""}

Step 7 - Extract smallest row number

The SMALL function returns the smallest row number in the array.

SMALL(IF((ISERROR(MATCH(Table2[Company], IF($B$19=Table1[Item], Table1[Company], ""), 0)))+COUNTIF($B$20:B20,Table2[Sales persons]), "", MATCH(ROW(Table2[Company]), ROW(Table2[Company]))), 1)

becomes

SMALL({1;"";"";"";"";"";7;"";"";"";11;"";13;"";""}, 1)

and returns 1.

Step 8 - Return value from Table2[Sales persons]

The INDEx function returns a value from an array or cell range based on a row and column number.

INDEX(Table2[Sales persons], SMALL(IF((ISERROR(MATCH(Table2[Company], IF($B$19=Table1[Item], Table1[Company], ""), 0)))+COUNTIF($B$20:B20,Table2[Sales persons]), "", MATCH(ROW(Table2[Company]), ROW(Table2[Company]))), 1))

becomes

INDEX(Table2[Sales persons], 1)

becomes

INDEX({"Cyril Strong"; "Lewis Moya"; "Kason Leonard"; "Triston Rigsby"; "Jaden Bonds"; "Kason Leonard"; "Cyril Strong"; "Lewis Moya"; "Hija Hanna"; "Simeon Fernandes"; "Dana Leak"; "Corydon Keck"; "Doloris Hawley"; "Corydon Keck"; "Hija Hanna"}, 1)

and returns "Cyril Strong" in cell B21.

Step 9 - Remove error values

The IFERROR function removes errors that will show up when the formula runs out of values to display.

IFERROR(INDEX(Table2[Sales persons], SMALL(IF((ISERROR(MATCH(Table2[Company], IF($B$19=Table1[Item], Table1[Company], ""), 0)))+COUNTIF($B$20:B20,Table2[Sales persons]), "", MATCH(ROW(Table2[Company]), ROW(Table2[Company]))), 1)), "")

12.2 Duplicate values

Array formula in cell B21:

12.2.1 How to create an array formula

1. Copy above array formula
2. Select cell B21
3. Press with left mouse button on in formula bar
4. Paste (Ctrl + v)
5. Press and hold Ctrl + Shift
6. Press Enter
7. Release all keys

The formula in the formula bar is now surrounded by curly brackets: {=array_formula}

12.2.2 How to copy an array formula

1. Select cell B21
2. Copy cell (Ctrl + c)
3. Select cell range B22:B23
4. Paste (Ctrl + v)

Get the Excel file

Unique-distinct-values-related-tables2.xlsx

Related tables category

Excel categories

Comments (28)
