Improve your Excel Chart with custom data labels
What's on this page
1. Improve your X Y Scatter Chart with custom data labels
The picture above shows a chart that has custom data labels, they are linked to specific cell values.
This means that you can build a dynamic chart and automatically change the labels depending on what is shown on the chart.
I have demonstrated how to build dynamic data labels in a previous article if you are interested in using those in a chart.
In a post from March 2013 I demonstrated how to create Custom data labels in a chart.
Unfortunately, that technique worked only for bar and column charts.
You can't apply the same technique for an x y scatter chart, as far as I know.
Luckily the people at Microsoft have heard our prayers.
They have implemented a feature into Excel 2013 that allows you to assign a cell to a chart data point label a, in an x y scatter chart.
I will demonstrate how to do this for Excel 2013 and later versions and a workaround for earlier versions in this article.
1.1 How to apply custom data labels in Excel 2013 and later versions
This example chart shows the distance between the planets in our solar system, in an x y scatter chart.
The first 3 steps tell you how to build a scatter chart.
- Select cell range B3:C11
- Go to tab "Insert"
- Press with left mouse button on the "scatter" button
- Press with right mouse button on on a chart dot and press with left mouse button on on "Add Data Labels"
- Press with right mouse button on on any dot again and press with left mouse button on "Format Data Labels"
- A new window appears to the right, deselect X and Y Value.

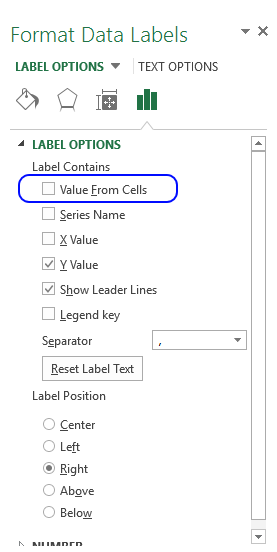

- Enable "Value from cells"
- Select cell range D3:D11
- Press with left mouse button on OK

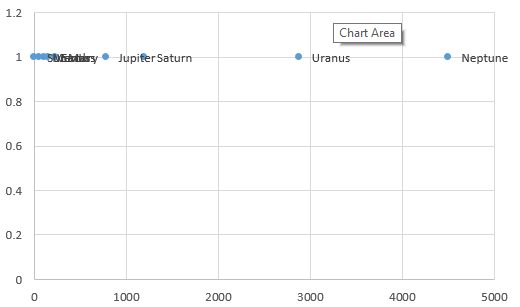

This is what the chart shows, as you can see you need to manually rearrange the data labels and add data label shapes.
1.1 Video
The following video shows you how to add data labels in an X Y Scatter Chart [Excel 2013 and later versions].
Learn more
Axis | Chart Area | Chart Title | Axis Titles | Axis lines | Chart Legend | Tick Marks | Plot Area | Data Series | Data Labels | Gridlines
1.2 How to add data label shapes
Press with right mouse button on on a data label.
- Press with mouse on "Change data label shapes".
- Select a shape.
1.3 How to change data label locations
You can manually press with left mouse button on and drag data labels as needed. You can also let excel change the position of all data labels, choose between center, left, right, above and below.
- Press with right mouse button on on a data label
- Press with left mouse button on "Format Data Labels"
- Select a new label position.
Learn more
Secondary Axis | Linear trendline | Logarithmic Trendline | Moving Average | Error Bars
2. Workaround for earlier Excel versions
This workaround is for Excel 2010 and 2007, it is best for a small number of chart data points.
- Press with left mouse button on twice on a label to select it.
- Press with left mouse button on in formula bar.
- Type =
- Use your mouse to press with left mouse button on a cell that contains the value you want to use.
- The formula bar changes to perhaps =Sheet1!$D$3
- Repeat step 1 to 5 with remaining data labels.
Change the value in cell D3 and see how the data label on the chart instantly changes.
The following animated picture demonstrates how to link a cell value to a specific chart data point.
If your chart has many data points this method becomes quickly tedious and time-consuming.
I have automated these steps for you in a macro that you can read about below, there is also an example workbook that you can get.
Learn more
Column | Bar | Line | Area | Pie | Doughnut | Scatter | Bubble | Funnel | Stock | Candlestick | Surface | Radar | Map
2.1 Apply custom data labels (VBA Macro)
This macro adds a cell reference to each data label, the value in the referenced cell is then linked to the label. If you change the value in the cell the label value changes as well.
'Name macro Sub AddDataLabels() 'Enable error handling On Error Resume Next 'Display an inputbox and ask the user for a cell range Set Rng = Application.InputBox(prompt:="Select cells to link" _ , Title:="Select data label values", Default:=ActiveCell.Address, Type:=8) 'Disable error handling On Error GoTo 0 With ActiveChart 'Iterate through each series in chart For Each ChSer In .SeriesCollection 'Save chart point to object SerPo Set SerPo = ChSer.Points 'Save the number of points in chart to variable j j = SerPo.Count 'Iterate though each point in current series For i = 1 To j 'Enable data label for current chart point SerPo(i).ApplyDataLabels Type:=xlShowValue 'Save cell reference to chart point SerPo(i).DataLabel.Formula = "=" & ActiveSheet.Name _ & "!" & Rng.Cells(i).Address(ReferenceStyle:=xlR1C1) Next Next End With End Sub
Learn more
Waterfall | Treemap | Sunburst | Histogram | Pareto | Box & Whisker
2.2 Where to put the code?
- Copy macro (CTRL + c)
- Go to the VB Editor (Alt + F11)
- Press with left mouse button on "Insert" on the top menu.
- Press with left mouse button on "Module" to insert a code module to your workbook.
- Paste code to the module. (CTRL + v)
- Return to Excel.
- Save your workbook as a macro-enabled workbook (*.xlsm file).
If you don't the macro will be gone the next time you open the same workbook.
Learn more
Arrow | Normal distribution | Equation | Comparison | Heat map | Gantt
2.3 How to use macro
- Select the x y scatter chart.
- Press Alt+F8 to view a list of macros available.
- Select "AddDataLabels".
- Press with left mouse button on "Run" button.
- Select the custom data labels you want to assign to your chart.
Make sure you select as many cells as there are data points in your chart.
- Press with left mouse button on OK button.
2. Label line chart series
The chart above contains no legend instead data labels are used to show what each line represents.
2.1. How to build
- Insert a line chart.
- To label each line we need a cell range with the same size as the chart source data. Simply copy the chart source data range and paste it to your worksheet, then delete all data.
- All cells are now empty. Copy categories (Regions in this example) and paste to the last column (2018).
Those correspond to the last data points in each series.
- Press with right mouse button on on a data series and select "Add Data Labels".
- Double press with left mouse button on with left mouse button on one of the data labels you just inserted to open the task pane window.
- Select checkbox "Value from cells".

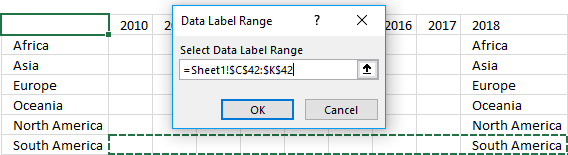

- Select data label cell range we created earlier in step 3 and 4, that corresponds to the same line series. Use the legend to identify line series.
In this example the data labels correspond to "South America", see image below.
- The data labels now show both numerical values and the last text value.
To hide the numerical values simply double press with left mouse button on on the data labels to open the task pane. - Deselect check box "Value".
- All numerical values are now deleted from the data labels, only the last data point has a data label, see image below.
- Position the data label to the right of the data point using the task pane.
- Resize the plot area so the data label doesn't collide with the line.
- Repeat step 4-12 with the remaining line series.
2.2. How to wrap data label text
- Double press with left mouse button on the cell that contains the data label.
- Put the prompt between the words.
- Press Alt + Enter.
- Press Enter.
2.3. Align data labels
- If you want the labels to be aligned to the left simply select the data label.
- Go to tab "Home" on the ribbon.
- Press with left mouse button on the "Align Left" button.
2.4 Get Excel *.xlsx file
3. Custom data labels in a column chart
You can easily change data labels in a chart. Select a single data label and enter a reference to a cell in the formula bar. You can also edit data labels, one by one, on the chart.
With many data labels, the task becomes quickly boring and time-consuming. But wait, there is a third option using a duplicate series on a secondary axis.
The animated image above shows you dynamic custom data labels. Here is how you build them.
Note! Before you continue reading. If you own Excel 2013 or a later version you don't have to do the work-around presented below this yellow box.
- Press with right mouse button on on any data series displayed in the chart.
- Press with mouse on "Add Data Labels".
- Press with mouse on Add Data Labels".
- Double press with left mouse button on any data label to expand the "Format Data Series" pane.
- Enable checkbox "Value from cells".
A small dialog box prompts for a cell range containing the values you want to use a s data labels. - Select the cell range and press with left mouse button on OK button.
The chart shows the values you selected as data labels.
3.1 Create a chart
- Select a cell range
- Go to "Insert" tab
- Press with left mouse button on "Column" button
- Select the first 2-D Column chart
3.2 Add another series to the chart
- Press with right mouse button on on chart

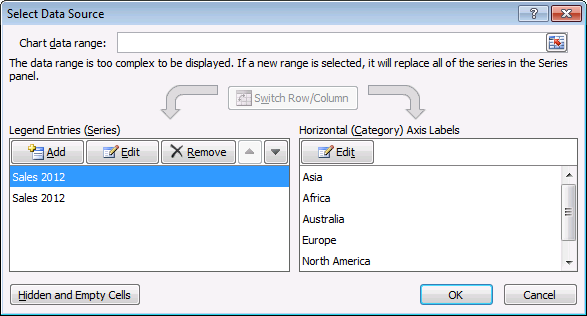

- Press with left mouse button on Select data
- Press with left mouse button on "Add" button
- Select a series name, cell C2
- Select series values, C3:C8
- Press with left mouse button on Ok
- Press with left mouse button on Ok
3.3 Plot series on the secondary axis
- Press with left mouse button on the second series on the chart
- Press with right mouse button on on a "second series" column
- Press with left mouse button on "Format Data Series..."

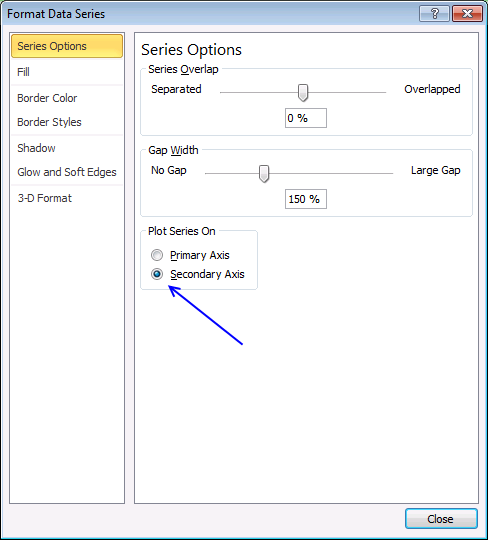

- Select "Secondary Axis"
- Press with left mouse button on Close
The following article shows you another trick using the secondary axis in a way it wasn't intended to do:
Recommended articles
This article demonstrates how to highlight a bar in a chart, it allows you to quickly bring attention to a […]
3.4 Change the second series data source
- Press with right mouse button on on the chart
- Press with left mouse button on "Select Data"

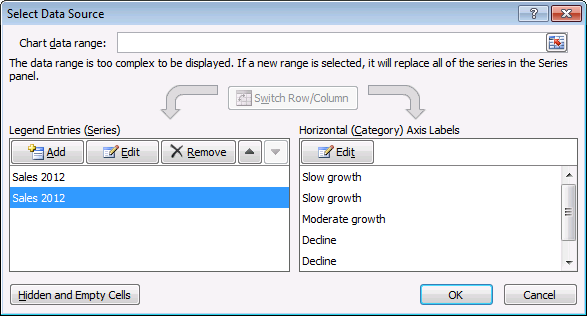

- Select the second series
- Press with left mouse button on "Edit" button (Horizontal (Category) Axis Labels)
- Select cell range D3:D8
- Press with left mouse button on OK
- Press with left mouse button on OK
3.5 Add data labels
- Press with right mouse button on on a column
- Press with left mouse button on "Add Data Labels"
- Double press with left mouse button on a data label

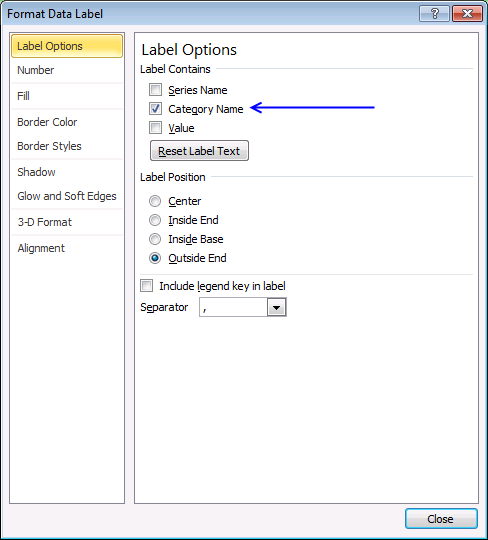

- Deselect Value
- Select Category name
- Press with left mouse button on Close
Charts category
Table of Contents How to add lines between stacked columns/bars (Excel charts) Use slicers to quickly filter chart data How […]
I recently discovered an interesting technique about using a user defined function in a HYPERLINK function. Jordan at the Option […]
In this article I will demonstrate how to quickly change chart data range utilizing a combobox (drop-down list). The above […]
Scatter x y chart category
Table of Contents How to graph a normal distribution How to build an arrow chart How to graph an equation […]
This article describes how to create a map in Excel, the map is an x y scatter chart with an […]
This article demonstrates how to insert pictures to a chart axis, the picture above shows a column chart with country […]
Excel categories
